  6. Swivel Plate Caster, TPR, 5", Brake, Overall Height: 6.34"

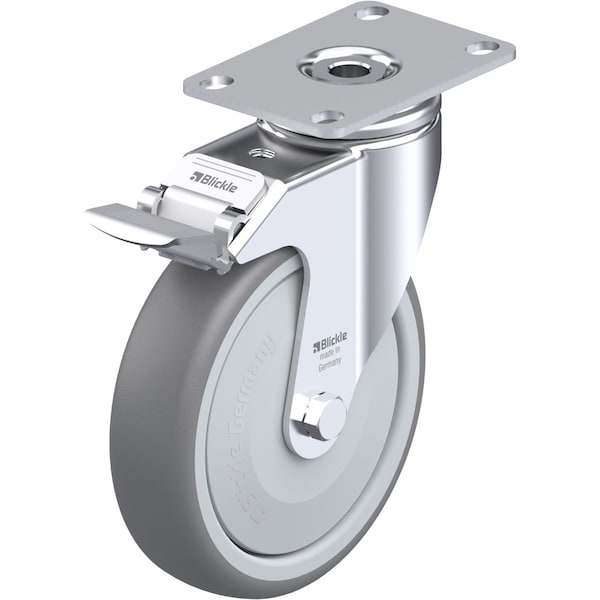

Blickle Swivel Plate Caster, TPR, 5", Brake, Overall Height: 6.34" LKPA-TPA 126KF-12-FI - main

Swivel Plate Caster, TPR, 5", Brake, Overall Height: 6.34"

  • Mfr # LKPA-TPA 126KF-12-FI

  • Zoro # G0889259

product price:  $28.29
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polypropylene/Thermoplastic Rubber Elastomer
Caster Brake Type
Stop Fix Brake (Total Lock)
Wheel Dia.
5in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LKPA-TPA 126KF-12-FI
Zoro #
G0889259
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
5in
Mounting Plate Size
2-1/2 in x 3-5/8 in
Mounting Plate Thickness
0.118 in
Mounting Bolt Dia.
5/16 in
Stem Dia.
No Stem
Overall Height
6.34in
Wheel Width
1-1/4in
Swivel Radius
4-1/16 in

Details

Item
Swivel Caster With Brake
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polypropylene/Thermoplastic Rubber Elastomer
Caster Brake Type
Stop Fix Brake (Total Lock)
Load Rating
265 lb.
Caster Mounting Type
Plate
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
85 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Caster Stem Type
No Stem/Plate Included
Number of Wheels
1
Caster Brake Included
Yes
Standards
RoHS, ICWM, NSF
Tread Color
Gray
Frame Finish
Zinc Plated
Tread
Standard
Includes
Stop-Fix Total-Lock Brake
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Replacement Wheel
Mfr. No. TPA 126/8K-FK
Extended Lead
No
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
Swivel Raceway Type
Double Ball
Series
LKPA Series
Includes Thread Guards
Yes
ESD Conductive
No
Wheel Core Material
Polypropylene
Load Capacity
265 lb
Load Rating Range
Light-Duty
Operating Temperature Range
-4 Degrees To 140 Degrees F

Description

Swivel With Brake
