  6. Swivel Plate Caster, TPR, 8", Brake, Caster Load Rating Range: Heavy-Duty
Blickle Swivel Plate Caster, TPR, 8", Brake, Caster Load Rating Range: Heavy-Duty LE-ALEV 200K-14-FI - main

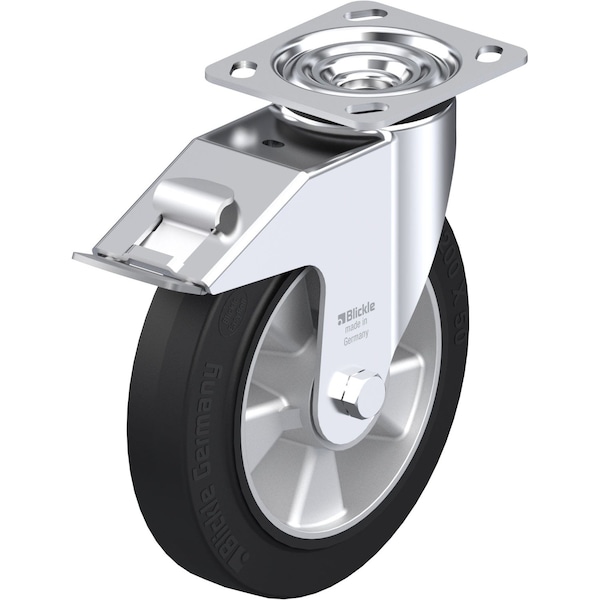

Swivel Plate Caster, TPR, 8", Brake, Caster Load Rating Range: Heavy-Duty

  • Mfr # LE-ALEV 200K-14-FI

  • Zoro # G0892339

product price:  $91.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Caster Brake Type
Stop Fix Brake (Total Lock)
Wheel Dia.
8in
Wheel Width
2in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LE-ALEV 200K-14-FI
Zoro #
G0892339
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
8in
Wheel Width
2in
Mounting Plate Size
4 in x 4-1/2 in
Mounting Plate Thickness
0.138 in
Mounting Bolt Dia.
3/8 in
Overall Height
9-1/4in
Stem Dia.
No Stem
Swivel Radius
6-1/8 in

Details

Item
Swivel Caster With Brake
Caster Sub-Type
Swivel
System of Measurement
Inch
Caster Brake Type
Stop Fix Brake (Total Lock)
Load Rating
660 lb.
Caster Mounting Type
Plate
Wheel Bearing Type
Precision Ball
Number of Mounting Holes
4
Tread Shape
Standard
Core Color
Silver
Non-Marking
No
Number of Wheels
1
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Inside Bolt Hole Spacing
3 in x 3 in
Caster Stem Type
No Stem/Plate Included
Caster Brake Included
Yes
Tread Color
Black
Standards
RoHS, ICWM
Replacement Wheel
Mfr. No. ALEV 200/20K
Tread
Standard
Frame Finish
Zinc Plated
Application
Retail, Industrial, Commercial
Includes
Stop-Fix Total-Lock Brake
Caster Frame Material
Steel
Extended Lead
No
Series
LE Series
Swivel Raceway Type
Double Ball
Includes Thread Guards
No
Wheel Core Material
Aluminum
Accessories
Optional: RI-04.14 (Directional Lock)
Load Rating Range
Heavy-Duty
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances, Except Oils
Load Capacity
660 lb
Wheel/Tread Material
Aluminum/Solid Rubber
Wheel Hardness Rating
65 Shore A
Operating Temperature Range
-15 Degrees To 175 Degrees F

Description

Swivel With Brake
