  11. Swivel Plate Castr, Solid Rbbr, 6", 880 lb.
Blickle Swivel Plate Castr, Solid Rbbr, 6", 880 lb. LH-ALEV 150K-16 - main

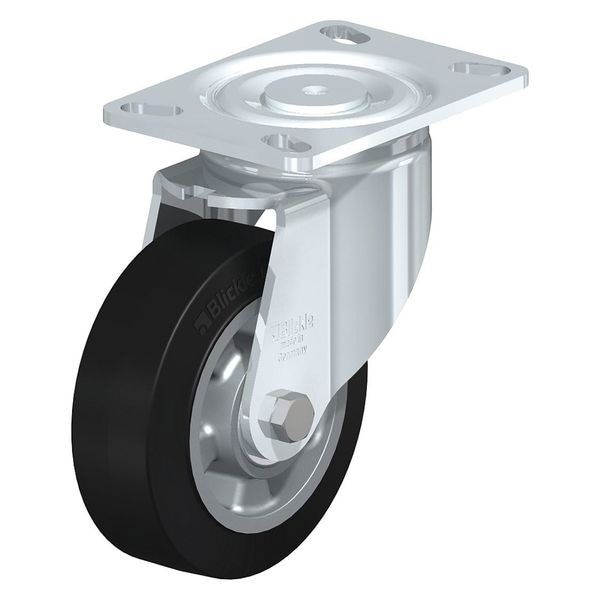

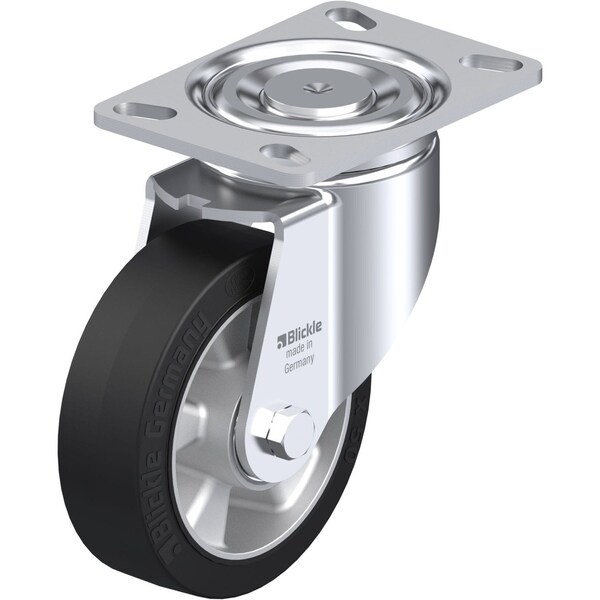

Swivel Plate Castr, Solid Rbbr, 6", 880 lb.

  • Mfr # LH-ALEV 150K-16

  • Zoro # G0894061

product price: $116.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Aluminum/Solid Rubber
Caster Brake Type
No Brake Included
Wheel Dia.
6in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LH-ALEV 150K-16
Zoro #
G0894061
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
6in
Wheel Width
2-1/8in
Mounting Plate Size
4-1/2 in x 6-1/4 in
Mounting Plate Thickness
0.236 in
Mounting Bolt Dia.
1/2 in
Stem Dia.
No Stem
Overall Height
7.76in
Swivel Radius
5-9/16 in

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Aluminum/Solid Rubber
Caster Brake Type
No Brake Included
Load Rating
880 lb.
Caster Mounting Type
Plate
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
65 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Silver
Non-Marking
No
Number of Wheels
1
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Caster Stem Type
No Stem/Plate Included
Caster Brake Included
No
Application
Retail, Industrial, Commercial
Replacement Wheel
Mfr. No. ALEV 150/20K
Tread
Standard
Standards
RoHS, ICWM
Tread Color
Black
Frame Finish
Zinc Plated
Extended Lead
No
ESD Conductive
No
Load Rating Range
Heavy-Duty
Wheel Core Material
Aluminum
Includes Thread Guards
No
Swivel Raceway Type
Double Ball
Series
LH Series
Accessories
Optional: RI-05.16 (Directional Lock)
Resistant To
High Chemical Resistance To Many Aggressive Substances, Except Oils
Load Capacity
880 lb
Operating Temperature Range
-15 Degrees To 175 Degrees F

Description

Swivel
