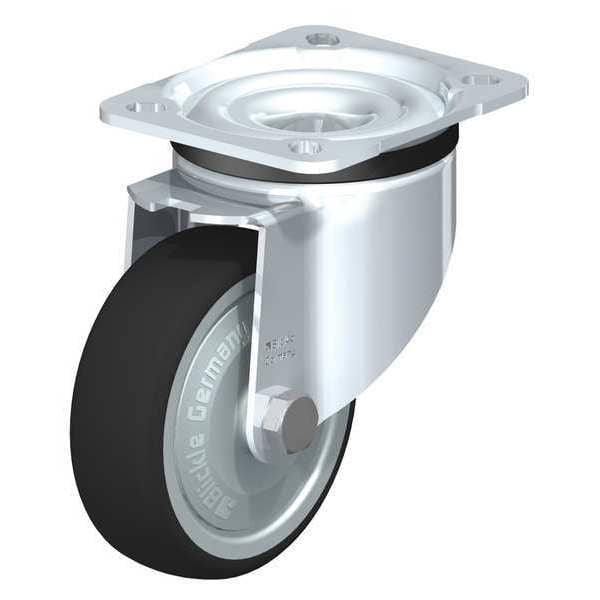

Blickle Swivel Plate Cstr, Polyurthan, 4", 440 lb. LK-PATH 100KF-1 - main

Swivel Plate Cstr, Polyurthan, 4", 440 lb.

  • Mfr # LK-PATH 100KF-1

  • Zoro # G9662646

product price:  $43.29
/ea

Key Features

Wheel/Tread Material
Thermoplastic Polyurethane
Caster Brake Type
No Brake Included
Wheel Dia.
100 mm
Wheel Width
32 mm
Caster Mounting Type
Plate
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LK-PATH 100KF-1
Zoro #
G9662646
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
100 mm
Wheel Width
32 mm
Mounting Plate Thickness
3.5 mm
Mounting Bolt Dia.
M8
Swivel Radius
95 mm
Overall Height
130 mm
Mounting Plate Size
85 mm x 100 mm

Details

Item
Swivel Caster
Wheel/Tread Material
Thermoplastic Polyurethane
Caster Brake Type
No Brake Included
Caster Mounting Type
Plate
Wheel Bearing Type
Precision Ball
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
60 mm x 80 mm
Inside Bolt Hole Spacing
60 mm x 80 mm
Standards
RoHS, ICWM
Caster Sub-Type
Swivel
Extended Lead
No
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Frame Finish
Zinc Plated
Caster Brake Included
No
Replacement Wheel
Mfr. No. PATH 100/10K-FK
System of Measurement
Metric
Tread Color
Dark Gray
Series
LK Series
ESD Conductive
No
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
Wheel Core Material
Nylon
Load Capacity
200 kg
Includes Thread Guards
Yes
Swivel Raceway Type
Double Ball
Tread
Standard
Load Rating Range
Medium Duty
Wheel Hardness Rating
94 Shore A
Operating Temperature Range
-25 Degrees To 70 Degrees C

Description

Swivel
