  11. Swivel Plate Cstr, Solid Rbbr, 6-5/16", Brk

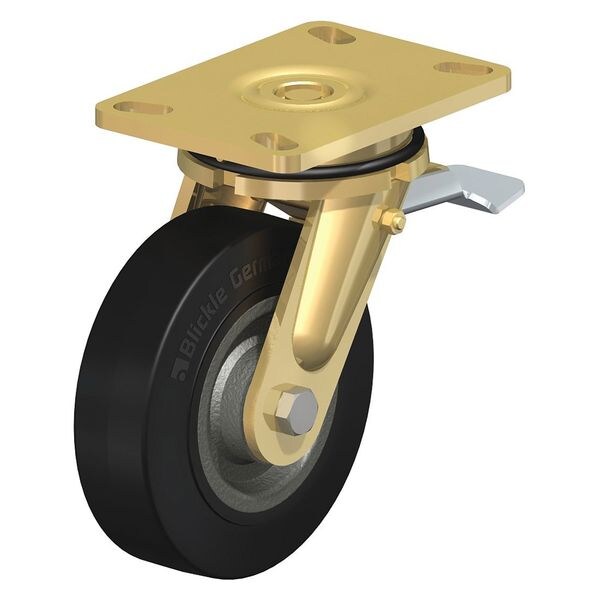

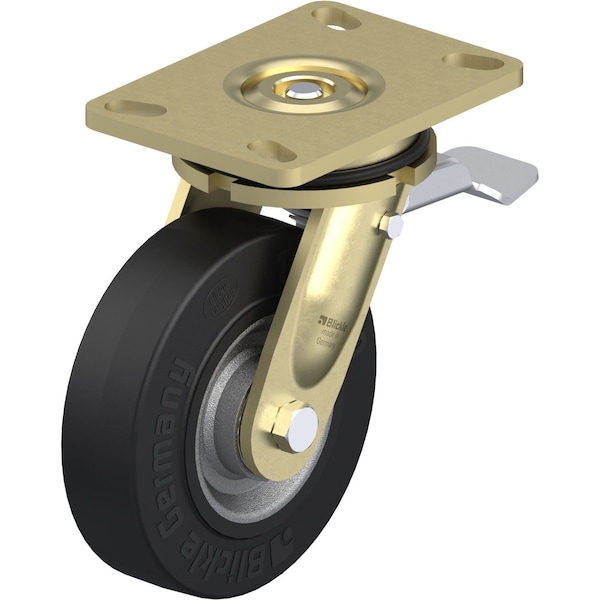

Blickle Swivel Plate Cstr, Solid Rbbr, 6-5/16", Brk LS-SE 160K-16-ST - main

Swivel Plate Cstr, Solid Rbbr, 6-5/16", Brk

  • Mfr # LS-SE 160K-16-ST

  • Zoro # G0894369

product price: $335.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Steel/Solid Rubber
Caster Brake Type
Stop Top Brake (Total Lock)
Wheel Dia.
6-5/16in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LS-SE 160K-16-ST
Zoro #
G0894369
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
6-5/16in
Wheel Width
2in
Mounting Plate Size
4-1/2 in x 6-1/4 in
Mounting Plate Thickness
0.315 in
Mounting Bolt Dia.
1/2 in
Overall Height
8.07in
Stem Dia.
No Stem
Swivel Radius
5-9/32 in

Details

Item
Swivel Caster With Brake
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Steel/Solid Rubber
Caster Brake Type
Stop Top Brake (Total Lock)
Load Rating
990 lb.
Caster Mounting Type
Plate
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
65 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
No
Number of Wheels
1
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Caster Brake Included
Yes
Caster Stem Type
No Stem/Plate Included
Standards
RoHS, ICWM
Frame Finish
Zinc Plated, Yellow Passivated
Replacement Wheel
Mfr. No. SE 160/20K
Application
Retail, Industrial, Commercial
Tread Color
Black
Includes
Stop-Top Total-Lock Brake
Tread
Standard
Extended Lead
No
Series
LS Series
Swivel Raceway Type
Single Ball/Tapered Roller Bearing
Includes Thread Guards
No
Wheel Core Material
Pressed Steel
ESD Conductive
No
Load Capacity
1000 lb
Load Rating Range
Heavy-Duty
Resistant To
Chemical Resistance To Many Aggressive Substances, Except Oils
Accessories
Optional: RI-LS-16 (Directional Lock)
Operating Temperature Range
-15 Degrees To 175 Degrees F

Description

Plate Caster
