  11. Swivel Plate Cstr, Solid Rbbr, 8", 1100 lb., Overall Height: 9.45"

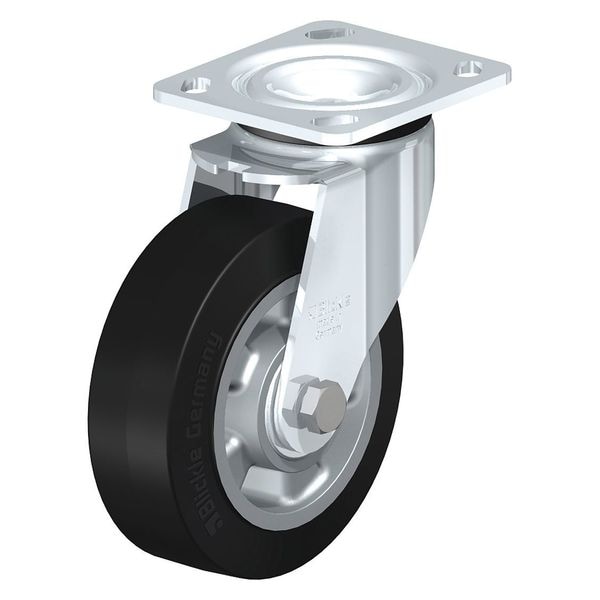

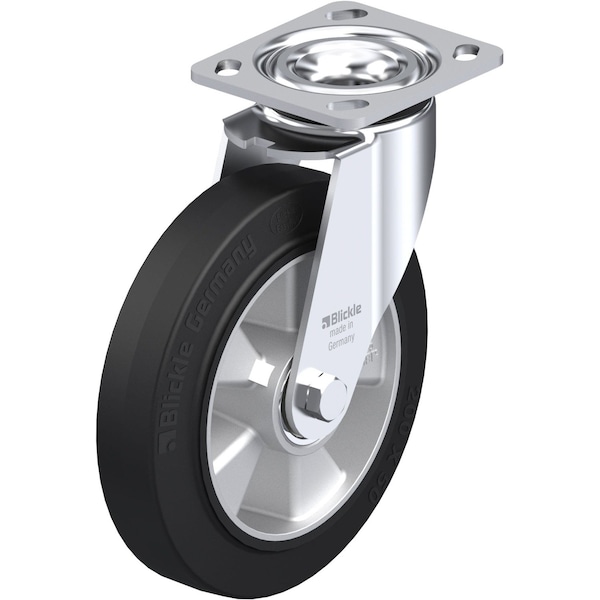

Blickle Swivel Plate Cstr, Solid Rbbr, 8", 1100 lb., Overall Height: 9.45" LEH-ALEV 200K-14 - main

Swivel Plate Cstr, Solid Rbbr, 8", 1100 lb., Overall Height: 9.45"

  • Mfr # LEH-ALEV 200K-14

  • Zoro # G0893632

product price: $97.89
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Aluminum/Solid Rubber
Caster Brake Type
No Brake Included
Wheel Dia.
8in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LEH-ALEV 200K-14
Zoro #
G0893632
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
8in
Wheel Width
2in
Mounting Plate Size
4 in x 4-1/2 in
Mounting Plate Thickness
0.197 in
Mounting Bolt Dia.
3/8 in
Overall Height
9.45in
Stem Dia.
No Stem
Swivel Radius
6-3/8 in

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Aluminum/Solid Rubber
Caster Brake Type
No Brake Included
Load Rating
1100 lb.
Caster Mounting Type
Plate
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
65 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Silver
Non-Marking
No
Number of Wheels
1
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Inside Bolt Hole Spacing
3 in x 3 in
Caster Brake Included
No
Caster Stem Type
No Stem/Plate Included
Application
Retail, Industrial, Commercial
Replacement Wheel
Mfr. No. ALEV 200/20K
Standards
RoHS, ICWM
Tread Color
Black
Frame Finish
Zinc Plated
Tread
Standard
Extended Lead
No
Swivel Raceway Type
Double Ball
Load Capacity
1100 lb
Load Rating Range
Heavy-Duty
Wheel Core Material
Aluminum
Accessories
Optional: RI-04.14 (Directional Lock)
Resistant To
High Chemical Resistance To Many Aggressive Substances, Except Oils
ESD Conductive
No
Includes Thread Guards
No
Series
LEH Series
Operating Temperature Range
-15 Degrees To 175 Degrees F

Description

Swivel
