Shop BLICKLE

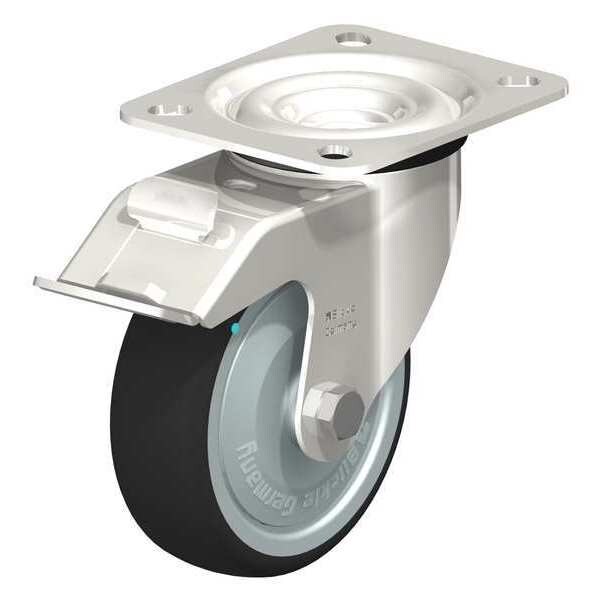

Swivl Plate Cstr, Polyurthane, 4", Brake

  • Mfr # LEX-PATH 100KFD-FI

  • Zoro # G9660738

product price:  $65.95
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Metric
Caster Mounting Type
Plate
Wheel Bearing Type
Precision Ball
Mounting Plate Size
85 mm x 100 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LEX-PATH 100KFD-FI
Zoro #
G9660738
UPC #
-
Country of Origin
Germany

Dimensions

Mounting Plate Size
85 mm x 100 mm
Mounting Plate Thickness
2.5 mm
Mounting Bolt Dia.
M8
Swivel Radius
86 mm
Wheel Width
32 mm
Wheel Dia.
100 mm
Overall Height
125 mm

Details

Item
Swivel With Brake
Caster Sub-Type
Swivel
System of Measurement
Metric
Caster Mounting Type
Plate
Wheel Bearing Type
Precision Ball
Tread Shape
Standard
Caster Frame Material
Stainless Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
60 mm x 80 mm
Extended Lead
No
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Inside Bolt Hole Spacing
60 mm x 80 mm
Standards
RoHS, ICWM
Frame Finish
Stainless Steel
Replacement Wheel
Mfr. No. PATH 100/8KD-FK
Includes
Stop-Fix Total-Lock Brake
Caster Brake Included
Yes
Caster Brake Type
Stop Fix Brake (Total Lock)
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
Tread Color
Dark Gray
Series
LEX Series
ESD Conductive
No
Load Capacity
150 kg
Tread
Standard
Wheel Core Material
Nylon
Includes Thread Guards
Yes
Load Rating Range
Medium Duty
Swivel Raceway Type
Double Ball
Number of Mounting Holes
4
Wheel/Tread Material
Thermoplastic Polyurethane
Wheel Hardness Rating
94 Shore A
Operating Temperature Range
-25 Degrees To 70 Degrees C

Description

Swivel With Brake
