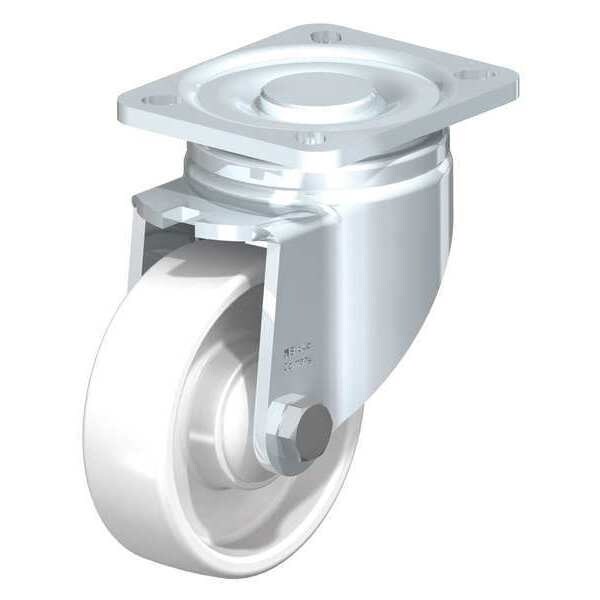

Swivl Plate Cstr, White Nylon, 4", 617 lb.

  • Mfr # LH-PO 100KA-1
  • Zoro # G9662969
product price:
$
62.19
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Medium Heavy Duty Nylon
Caster Brake Type
No Brake Included
Wheel Width
37 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LH-PO 100KA-1
Zoro #
G9662969
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
100 mm
Wheel Width
37 mm
Mounting Bolt Dia.
M8
Swivel Radius
95 mm
Overall Height
140 mm
Mounting Plate Size
85 mm x 100 mm
Mounting Plate Thickness
6 mm

Details

Item
Swivel
Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Medium Heavy Duty Nylon
Caster Brake Type
No Brake Included
Caster Mounting Type
Plate
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
70 Shore D
Caster Frame Material
Steel
Core Color
White
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
60 mm x 80 mm
Inside Bolt Hole Spacing
60 mm x 80 mm
Replacement Wheel
Mfr. No. PO 100/10K
Application
Retail, Industrial, Commercial, Corrosion Resistance
Standards
RoHS, ICWM
Extended Lead
No
Caster Brake Included
No
Frame Finish
Zinc Plated
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity
280 kg
Includes Thread Guards
No
Swivel Raceway Type
Double Ball
Tread Shape
Standard
Wheel Core Material
Nylon
Accessories
Optional: RI-04.01 (Directional Lock)
Load Rating Range
Heavy Duty
Number of Mounting Holes
4
Series
LH Series
Tread
Standard
Tread Color
White
Operating Temperature Range
-25 Degrees To 80 Degrees C

Description

Swivel
