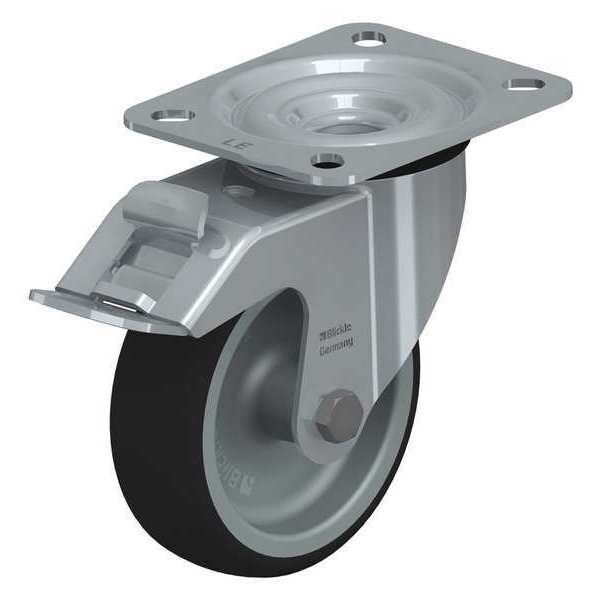

Blickle Swivl Plte Cstr, Polyurthane, 4", Brake LE-PATH 100G-FI - main

Swivl Plte Cstr, Polyurthane, 4", Brake

  • Mfr # LE-PATH 100G-FI

  • Zoro # G9661876

product price:  $29.59
/ea

Key Features

Caster Brake Type
Stop Fix Brake (Total Lock)
Wheel Dia.
100 mm
Wheel Width
32 mm
Wheel Hardness Rating
94 Shore A
Mounting Plate Size
85 mm x 100 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LE-PATH 100G-FI
Zoro #
G9661876
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
100 mm
Wheel Width
32 mm
Mounting Plate Size
85 mm x 100 mm
Mounting Plate Thickness
2.5 mm
Mounting Bolt Dia.
M8
Overall Height
125 mm
Swivel Radius
86 mm

Details

Caster Brake Type
Stop Fix Brake (Total Lock)
Wheel Hardness Rating
94 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Number of Wheels
1
Outside Bolt Hole Spacing
60 mm x 80 mm
Inside Bolt Hole Spacing
60 mm x 80 mm
Item
Swivel Caster With Brake
Includes
Stop-Fix Total-Lock Brake
Caster Sub-Type
Swivel
Caster Brake Included
Yes
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Frame Finish
Zinc Plated
Extended Lead
No
Standards
RoHS, ICWM
Replacement Wheel
Mfr. No. PATH 100/12G
Non-Marking
Yes
System of Measurement
Metric
Accessories
Optional: RI-04.14 (Directional Lock)
Load Rating Range
Medium Duty
Wheel Core Material
Nylon
Load Capacity
150 kg
Includes Thread Guards
No
Series
LE Series
Tread
Standard
Tread Color
Dark Gray
Swivel Raceway Type
Double Ball
ESD Conductive
No
Caster Mounting Type
Plate
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
Wheel Bearing Type
Plain
Wheel/Tread Material
Thermoplastic Polyurethane
Operating Temperature Range
-25 Degrees To 70 Degrees C

Description

Swivel With Brake
