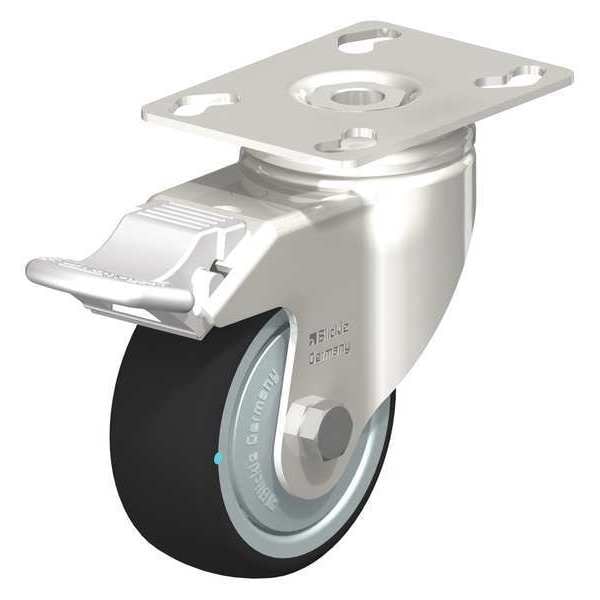

Swvl Plate Cstr, Plyurthn, 3-1/8", Brake

Name: Swvl Plate Cstr, Plyurthn, 3-1/8", Brake
Brand: Blickle
SKU: G9660169
Price: 72.89 USD
Availability: InStock

72.89

/ea

Caster Sub-Type

Swivel

System of Measurement

Metric

Wheel/Tread Material

Thermoplastic Polyurethane

Caster Brake Type

Stop Fix Brake (Total Lock)

Wheel Width

32 mm

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Get 10% off your order

Specifications

Item: Swivel With Brake
Caster Sub-Type: Swivel
System of Measurement: Metric
Wheel/Tread Material: Thermoplastic Polyurethane
Caster Brake Type: Stop Fix Brake (Total Lock)
Caster Mounting Type: Plate
Wheel Bearing Type: Precision Ball
Wheel Hardness Rating: 94 Shore A
Number of Mounting Holes: 4
Tread Shape: Standard
Caster Frame Material: Stainless Steel
Core Color: Gray
Non-Marking: Yes
Number of Wheels: 1
Outside Bolt Hole Spacing: 45 mm x 75 mm
Inside Bolt Hole Spacing: 51 mm x 61 mm
Frame Finish: Stainless Steel
Application: Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Standards: RoHS, ICWM, NSF
Caster Brake Included: Yes
Extended Lead: No
Replacement Wheel: Mfr. No. PATH 80/8KD-FK
Includes: Stop-Fix Total-Lock Brake
Tread Color: Dark Gray
ESD Conductive: No
Swivel Raceway Type: Double Ball
Series: LKPXA Series
Load Capacity: 120 kg
Wheel Core Material: Nylon
Load Rating Range: Medium Duty
Resistant To: Very High Chemical Resistance To Many Aggressive Substances
Includes Thread Guards: Yes
Tread: Standard
Operating Temperature Range: -25 Degrees To 70 Degrees C

Swivel With Brake
