Shop BLICKLE

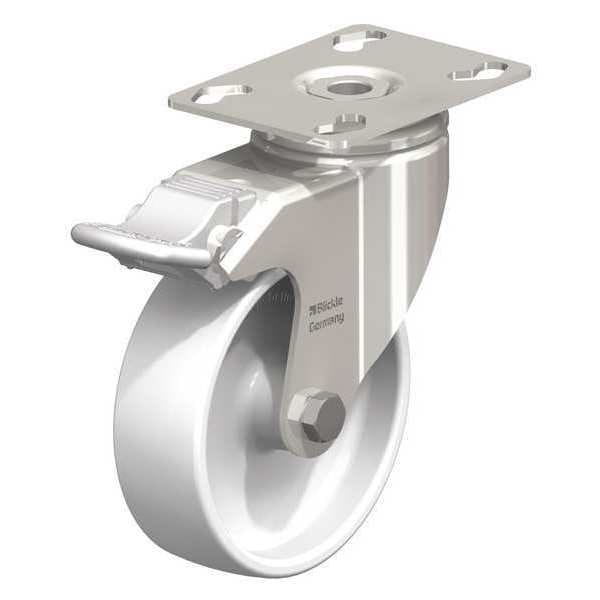

Swvl Plate Cstr, Whte Nylon, 4", Brake

  • Mfr # LKPXA-PO 101G-FI

  • Zoro # G9660318

product price:  $67.39
/ea

Key Features

System of Measurement
Metric
Wheel/Tread Material
Medium Heavy Duty Nylon
Caster Brake Type
Stop Fix Brake (Total Lock)
Wheel Width
32 mm
Caster Mounting Type
Plate
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LKPXA-PO 101G-FI
Zoro #
G9660318
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
100 mm
Wheel Width
32 mm
Mounting Plate Size
66 mm x 90 mm
Mounting Plate Thickness
2.25 mm
Swivel Radius
90 mm
Mounting Bolt Dia.
M8
Overall Height
136 mm

Details

Item
Swivel With Brake
System of Measurement
Metric
Wheel/Tread Material
Medium Heavy Duty Nylon
Caster Brake Type
Stop Fix Brake (Total Lock)
Caster Mounting Type
Plate
Wheel Hardness Rating
70 Shore D
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Stainless Steel
Core Color
White
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
45 mm x 75 mm
Inside Bolt Hole Spacing
51 mm x 61 mm
Replacement Wheel
Mfr. No. PO 101/12G
Includes
Stop-Fix Total-Lock Brake
Standards
RoHS, ICWM, NSF
Extended Lead
No
Frame Finish
Stainless Steel
Caster Sub-Type
Swivel
Application
Retail, Industrial, Commercial, Corrosion Resistance
Caster Brake Included
Yes
Series
LKPXA Series
Wheel Core Material
Nylon
Load Rating Range
Medium Duty
Resistant To
High Chemical Resistance To Many Aggressive Substances
Includes Thread Guards
No
Load Capacity
120 kg
Tread Color
White
ESD Conductive
No
Swivel Raceway Type
Double Ball
Tread
Standard
Wheel Bearing Type
Plain
Operating Temperature Range
-25 Degrees To 80 Degrees C

Description

Swivel With Brake
