  6. Swvl Plt Cstr, Nyln, 3-1/8", 505lb., Trck Lk

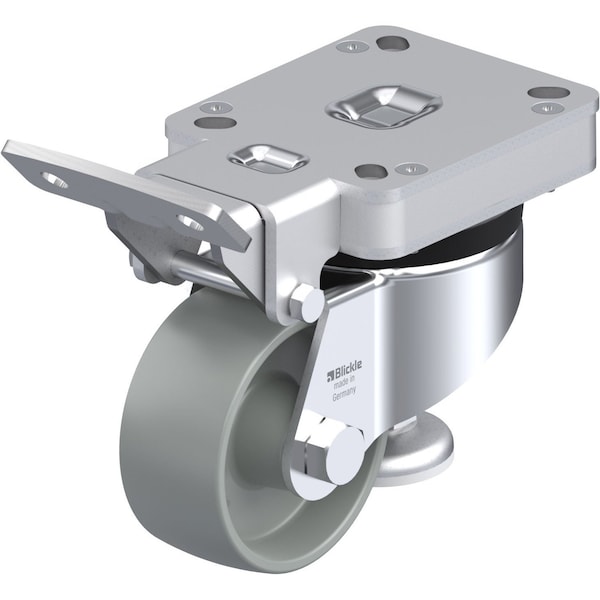

Blickle Swvl Plt Cstr, Nyln, 3-1/8", 505lb., Trck Lk HRLK-POG 82G - main

Swvl Plt Cstr, Nyln, 3-1/8", 505lb., Trck Lk

  • Mfr # HRLK-POG 82G

  • Zoro # G0896119

product price:  $122.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Heavy Duty Nylon
Caster Brake Type
Integrated Truck Lock
Wheel Width
1-7/16in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HRLK-POG 82G
Zoro #
G0896119
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
3-1/8in
Wheel Width
1-7/16in
Mounting Plate Size
85 mm x 100 mm
Mounting Plate Thickness
3.5 mm
Mounting Bolt Dia.
5/16 in
Overall Height
4.72in
Swivel Radius
3-49/64 in
Retracted Height
4-11/16 in
Maximum Leveling Height
4-51/64"

Details

Item
Leveling Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Heavy Duty Nylon
Caster Brake Type
Integrated Truck Lock
Load Rating
505 lb.
Caster Mounting Type
Plate
Wheel Bearing Type
Plain
Wheel Hardness Rating
70 Shore D
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
60 mm x 80 mm
Inside Bolt Hole Spacing
60 mm x 80 mm
Standards
RoHS, ICWM
Tread
Standard
Application
Used For Leveling Applications
Caster Brake Included
Yes
Tread Color
Gray
Includes
Leveling Foot
Frame Finish
Zinc Plated
Extended Lead
No
Load Rating Range
Medium-Heavy Duty
Resistant To
High Chemical Resistance To Many Aggressive Substances
Wheel Core Material
Nylon
Load Capacity
505 lb
Includes Thread Guards
No
Series
HRLK Series
Swivel Raceway Type
Double Ball
ESD Conductive
No
Operating Temperature Range
-25 Degrees To 80 Degrees C

Description

Leveling Swivel
