Shop BLICKLE

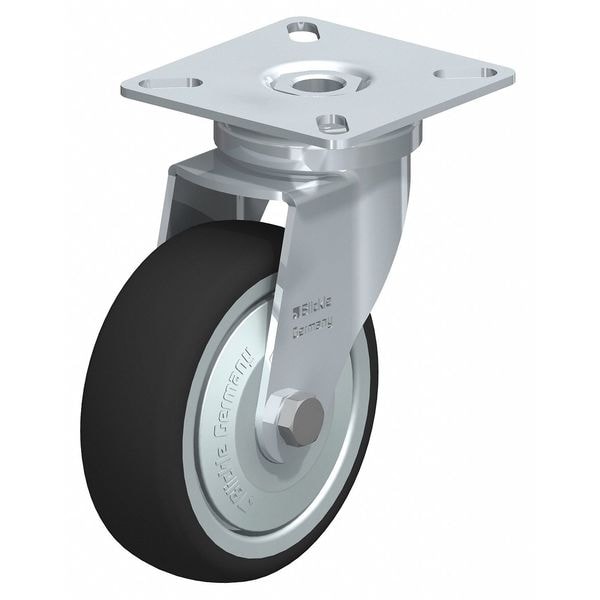

Swvl Plte Cstr, Polyurthn, 3-1/8", 165 lb.

  • Mfr # LPA-PATH 75KF

  • Zoro # G9661298

product price:
$
20.19
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Metric
Caster Brake Type
No Brake
Wheel Dia.
3 in
Mounting Height
3 15/16 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LPA-PATH 75KF
Zoro #
G9661298
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
3 in
Mounting Height
3 15/16 in
Mounting Plate Size
60 mm x 60 mm
Mounting Plate Thickness
3/32 in
Mounting Bolt Dia.
7/32 in
Swivel Radius
66.5 mm
Overall Height
100 mm
Wheel Width
1 in
Overall Wheel Width
1 in
Inside Slot Spacing - Length
38 mm
Inside Slot Spacing - Width
38 mm
Mounting Plate Width
60 mm
Outside Slot Spacing - Length
48 mm
Mounting Plate Length
60 mm
Outside Slot Spacing - Width
48 mm
Bolt Hole Spacing - Length
1.5 in
For Axle Dia.
6 mm

Details

Item
Plate Caster
Caster Sub-Type
Swivel
System of Measurement
Metric
Caster Brake Type
No Brake
Caster Mounting Type
Plate
Wheel Hardness Rating
94 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Core Color
Gray
Non-Marking
Yes
Outside Bolt Hole Spacing
48 mm x 48 mm
Inside Bolt Hole Spacing
38 mm x 38 mm
Number of Wheels
1
Standards
RoHS, ICWM, NSF
Caster Brake Included
No
Frame Finish
Zinc Plated
Extended Lead
No
Replacement Wheel
Mfr. No. PATH 75/6K-FK
Caster Frame Material
Steel
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Series
LPA Series
Tread Color
Dark Gray
Wheel Core Material
Nylon
Includes Thread Guards
Yes
ESD Conductive
No
Load Capacity
75 kg
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
Swivel Raceway Type
Double Ball
Tread
Standard
Load Rating Range
Medium Duty
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Wheel Bearing Material
Steel
Mounting Plate Shape
Rectangle
Load Capacity - Maximum
420 lb
Wheel/Tread Material
Polyurethane
Mounting Hole Type
Hole
Wheel Bearing Type
Ball
Wheel Core Type
Solid
Operating Temperature Range
-25 Degrees To 70 Degrees C

Description

Swivel, Plate Caster, Wheel Dia. 3 in, Wheel Width 1 in, Wheel/Tread Material Polyurethane, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
