  11. Swvl Plte Cstr, Polyurthn, 5", 265 lb.
Blickle Swvl Plte Cstr, Polyurthn, 5", 265 lb. LKPA-PATH 126KF - main

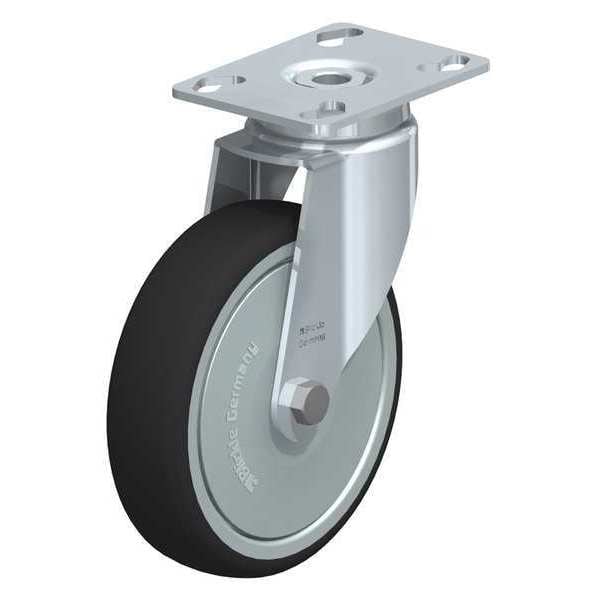

Swvl Plte Cstr, Polyurthn, 5", 265 lb.

  • Mfr # LKPA-PATH 126KF

  • Zoro # G9661456

product price: $29.89
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Thermoplastic Polyurethane
Caster Brake Type
No Brake
Wheel Dia.
5 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LKPA-PATH 126KF
Zoro #
G9661456
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
5 in
Wheel Width
1 1/4 in
Mounting Height
6 5/8 in
Mounting Plate Size
66 mm x 90 mm
Mounting Plate Thickness
3 mm
Mounting Bolt Dia.
5/16 in
Swivel Radius
102.5 mm
Overall Height
161 mm
Overall Wheel Width
1 1/4 in
Inside Slot Spacing - Length
61 mm
Outside Slot Spacing - Length
75 mm
Mounting Plate Length
90 mm
Inside Slot Spacing - Width
45 mm
Bolt Hole Spacing - Length
2.969 in
Outside Slot Spacing - Width
51 mm
Mounting Plate Width
66 mm
For Axle Dia.
8 mm

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Thermoplastic Polyurethane
Caster Brake Type
No Brake
Caster Mounting Type
Plate
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
94 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
45 mm x 75 mm
Inside Bolt Hole Spacing
51 mm x 61 mm
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Frame Finish
Zinc Plated
Replacement Wheel
Mfr. No. PATH 126/8K-FK
Standards
RoHS, ICWM, NSF
Extended Lead
No
Caster Brake Included
No
ESD Conductive
No
Wheel Core Material
Nylon
Series
LKPA Series
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
Includes Thread Guards
Yes
Load Capacity
120 kg
Tread
Standard
Tread Color
Dark Gray
Swivel Raceway Type
Double Ball
Load Rating Range
Medium Duty
Mounting Plate Shape
Rectangle
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Load Capacity - Maximum
660 lb
Mounting Hole Type
Hole
Wheel Bearing Material
Steel
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Core Type
Solid
Operating Temperature Range
-25 Degrees To 70 Degrees C

Description

Swivel, Plate Caster, Wheel Dia. 5 in, Wheel Width 1 1/4 in, Wheel/Tread Material Polyurethane, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
