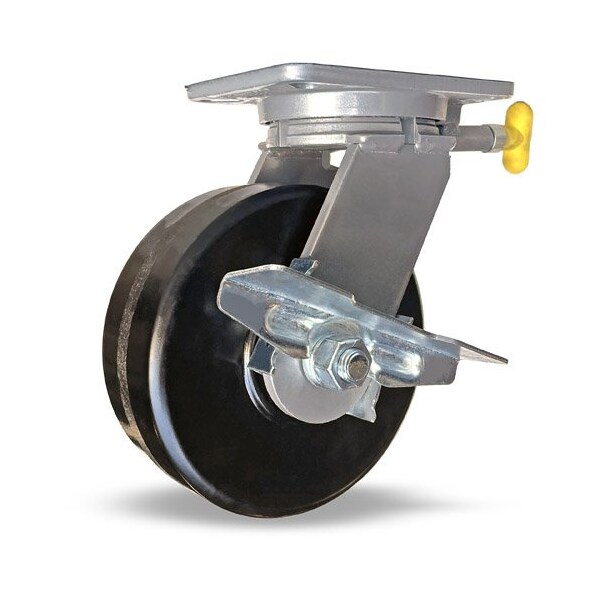

Plate Caster, Swivel, Phenolic, 8 in., 3000 lb.

  • Mfr # S-CH-83PH-4SL-FB

  • Zoro # G2084564

product price:
$
226.99
/ea
Free Shipping & Returns

Key Features

Includes
Four Position Swivel Lock
Wheel Color
Black
Extended Lead
No
Load Rating
3000 lb
Number of Wheels
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
S-CH-83PH-4SL-FB
Zoro #
G2084564
UPC #
-
Country of Origin
United States

Dimensions

Wheel Width
3 in
Wheel Dia.
8 in
Stem Dia.
No Stem
Mounting Bolt Dia.
1/2 in
Overall Height
10-1/2"
Mounting Plate Size
5 1/4 in x 7 1/4 in
Mounting Height
10 1/2 in
Inside Slot Spacing - Width
3.375 in
Mounting Plate Thickness
3/8 in
Overall Wheel Width
3 in
Outside Slot Spacing - Width
4.125 in
Inside Slot Spacing - Length
5.25 in
Mounting Plate Length
7 1/4 in
Outside Slot Spacing - Length
6.125 in
For Axle Dia.
3/4 in
Mounting Plate Width
5 1/4 in

Details

Includes
Four Position Swivel Lock
Wheel Color
Black
Extended Lead
No
Load Rating
3000 lb
Number of Wheels
1
Caster Temp. Range Available
Yes
Core Color
Black
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Caster Plate Hole Pattern
A
Caster Frame Material
Steel
Inside Bolt Hole Spacing
4-1/8 in x 6-1/8 in
Standards
ANSI ICWM
Caster Stem Type
No Stem/Plate Included
Replacement Wheel
5VJ94
Frame Finish
Enamel
Caster Brake Type
Total Lock
Caster Brake Included
Yes
Caster Sub-Type
Swivel
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Non-Marking
Yes
Thread Guards
No
Item
Plate Caster
System of Measurement
Inch
Includes Thread Guards
No
Load Rating Range
3000 to 5999 lb
Swivel Raceway Type
Single Ball
Wheel/Tread Hardness Rating
Hard
Wheel Bearing Type
Roller
Number of Mounting Holes
4
Swivel Lock Type
4-Position Directional Lock
Swivel Construction
Kingpin
Tread Shape
Standard
Wheel Core Material
Phenolic
Wheel/Tread Material
Phenolic
Wheel/Tread Color
Black
Wheel Type
Flat-Free
Wheel Hardness Rating
90 Shore D
Load Capacity - Maximum
3,000 lb
Wheel Core Type
Solid
For Surface Type
Concrete
Brake Location
Right Side
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot
Operating Temperature Range
-50 Degrees to 300 Degrees F
Operating Temperature - Minimum
-50 Degrees F
Operating Temperature - Maximum
300 Degrees F

Description

Swivel, Plate Caster, Load Rating 3000 lb, Swivel Lock Type 4-Position Directional Lock, Wheel Dia. 8 in, Wheel Width 3 in, Wheel/Tread Material Phenolic, Wheel Core Material Phenolic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
