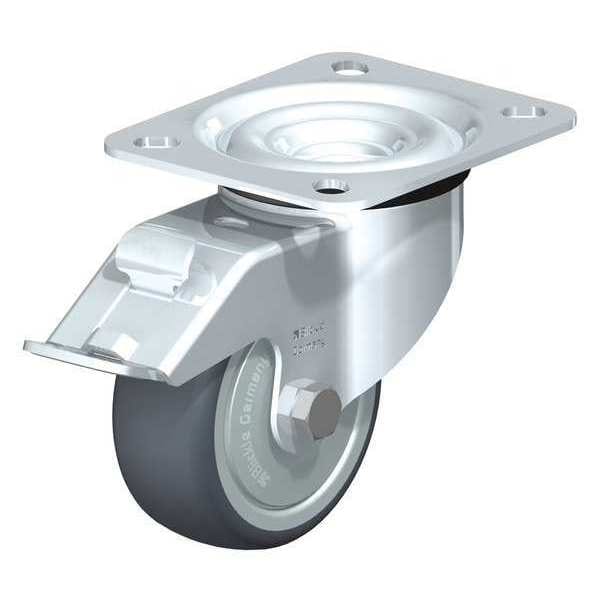

Swvl Plte Cstr, TPR Rubbr, 3-1/8", Brake

Name: Swvl Plte Cstr, TPR Rubbr, 3-1/8", Brake
Brand: Blickle
SKU: G9662110
Price: 33.49 USD
Availability: InStock

33.49

/ea

Caster Sub-Type

Swivel

Caster Brake Type

Stop Fix Brake (Total Lock)

Wheel Width

32 mm

Caster Mounting Type

Plate

Wheel Bearing Type

Precision Ball

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Get 10% off your order

Specifications

Item: Swivel With Brake
Caster Sub-Type: Swivel
Caster Brake Type: Stop Fix Brake (Total Lock)
Caster Mounting Type: Plate
Wheel Bearing Type: Precision Ball
Wheel Hardness Rating: 85 Shore A
Number of Mounting Holes: 4
Core Color: Gray
Non-Marking: Yes
Number of Wheels: 1
Outside Bolt Hole Spacing: 60 mm x 80 mm
Inside Bolt Hole Spacing: 60 mm x 80 mm
Replacement Wheel: Mfr. No. TPA 80/8K-FK
Frame Finish: Zinc Plated
Caster Frame Material: Steel
Standards: RoHS, ICWM
Application: Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Includes: Stop-Fix Total-Lock Brake
Extended Lead: No
Caster Brake Included: Yes
System of Measurement: Metric
Accessories: Optional: RI-04.14 (Directional Lock)
Wheel Core Material: Polypropylene
Swivel Raceway Type: Double Ball
Includes Thread Guards: Yes
Load Capacity: 100 kg
Tread Color: Gray
ESD Conductive: No
Resistant To: Very High Chemical Resistance To Many Aggressive Substances
Tread Shape: Standard
Load Rating Range: Medium Duty
Tread: Standard
Series: LE Series
Wheel/Tread Material: Thermoplastic Rubber
Operating Temperature Range: -20 Degrees To 60 Degrees C

Swivel With Brake
