  6. Swvl Plte Cstr, White Nylon, 4", Brake

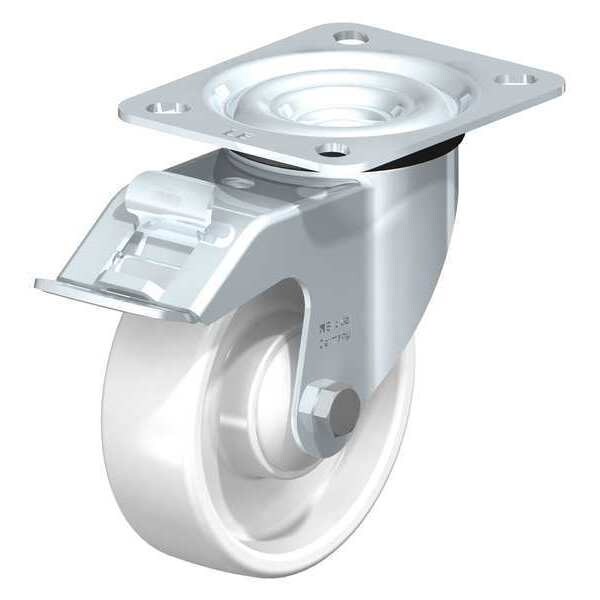

Blickle Swvl Plte Cstr, White Nylon, 4", Brake LE-PO 100KA-FI - main

Swvl Plte Cstr, White Nylon, 4", Brake

  • Mfr # LE-PO 100KA-FI

  • Zoro # G9661989

product price:  $35.49
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Medium Heavy Duty Nylon
Caster Brake Type
Stop Fix Brake (Total Lock)
Wheel Dia.
100 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LE-PO 100KA-FI
Zoro #
G9661989
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
100 mm
Wheel Width
37 mm
Mounting Plate Thickness
2.5 mm
Mounting Bolt Dia.
M8
Overall Height
125 mm
Swivel Radius
86 mm
Mounting Plate Size
85 mm x 100 mm

Details

Item
Swivel Caster With Brake
Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Medium Heavy Duty Nylon
Caster Brake Type
Stop Fix Brake (Total Lock)
Caster Mounting Type
Plate
Wheel Hardness Rating
70 Shore D
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
White
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
60 mm x 80 mm
Inside Bolt Hole Spacing
60 mm x 80 mm
Standards
RoHS, ICWM
Includes
Stop-Fix Total-Lock Brake
Application
Retail, Industrial, Commercial, Corrosion Resistance
Caster Brake Included
Yes
Frame Finish
Zinc Plated
Replacement Wheel
Mfr. No. PO 100/8K
Extended Lead
No
Tread Color
White
Tread
Standard
Wheel Core Material
Nylon
Resistant To
High Chemical Resistance To Many Aggressive Substances
Accessories
Optional: RI-04.14 (Directional Lock)
Swivel Raceway Type
Double Ball
ESD Conductive
No
Series
LE Series
Includes Thread Guards
No
Load Rating Range
Medium Duty
Load Capacity
150 kg
Wheel Bearing Type
Precision Ball
Operating Temperature Range
-25 Degrees To 80 Degrees C

Description

Swivel With Brake
