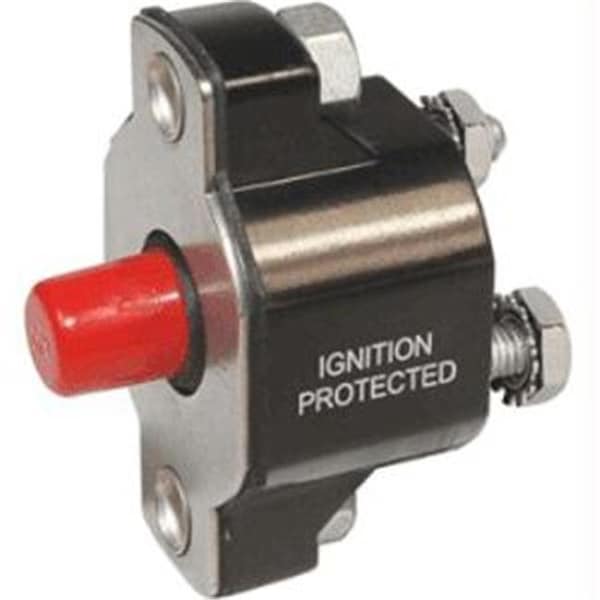

Blue Sea 2142 Medium Duty Push Button Reset - Only - 50A - 2142
Mfr # 2142
Zoro # G004027895
product price:Â
$
111.99
/ea
Free Shipping & Returns
Key Features
Maintained Action Release
Push
Standards
SAE J1428, SAE J553, UL 1077, UL 1500
Interrupt Capacity
3000A at 120V AC, 5000A at 32V DC
Minimum Operating Temperature
-54°C
Maximum Voltage
120V AC, 32V DC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 2142
- Zoro #
- G004027895
- UPC #
- 632085121429
- Country of Origin
- China
Details
- Item
- Push Button Reset Switch
- Maintained Action Release
- Push
- Standards
- SAE J1428, SAE J553, UL 1077, UL 1500
- Interrupt Capacity
- 3000A at 120V AC, 5000A at 32V DC
- Minimum Operating Temperature
- -54°C
- Maximum Voltage
- 120V AC, 32V DC
- Terminal Stud Torque
- 3.39 Nm
- Meets
- SAE J1428, SAE J553, UL 1077, UL 1500
- Amperage
- 50A
- Terminal Stud
- #10-32 Stainless Steel
- Mounting Screw Thread
- #8-32
- Circuit Breaker Type
- Thermal trip, manual push-button reset only
- Maximum Operating Temperature
- 74°C
Description
2142Amperage: 50AFeatures:Weatherproof Can be used as Main Branch or 24 hour circuit protection Compact design enables high density circuit protection configurations Push-to-reset operation "Trip Free" design cannot be held "ON" during fault current condition Ignition protected - Safe for installation aboard gasoline powered boats Captive star lock washers meet requirements for anti-rotation and eliminate handling of small easily dropped parts Product : BLUE SEA 2142 MEDIUM DUTY PUSH BUTTON RESET ONLY 50A Manufacturer : BLUE SEA SYSTEM Manufacturer Part No : 2142 UPC : 632085121429
