Circuit Breaker, 15A, 2 Pole, 240V AC, 5kA
Mfr # 7462
Zoro # G702942926
product price: $78.35
/ea
Free Shipping & Returns
Key Features
Amps
15A
Number of Poles
2
AC Voltage Rating
240V AC
Circuit Breaker Actuator
Flat Rocker
Max. AIR Rating
5kA
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
7462
Zoro #
G702942926
UPC #
632085074623
Country of Origin
Mexico
Dimensions
Width
1-1/2 in
Depth
3.53 in
Height
3.10 in
Details
Item
Circuit Breaker
Amps
15A
Number of Poles
2
AC Voltage Rating
240V AC
Circuit Breaker Actuator
Flat Rocker
Max. AIR Rating
5kA
Trip Type
Hydraulic Magnetic
Terminal Connection
Screw
DC Voltage Rating
Not Rated
Description

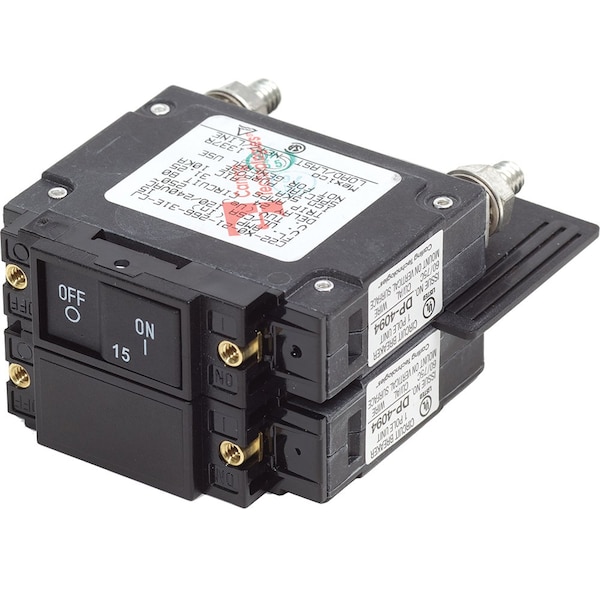

7462 UL-489 Circuit Breaker - 15A Flat Rocker
Suitable for use when UL-489 specifications are required (Navy, Army, or Coast Guard vessels, and other vessels covered under CFR 46)
Specifications:
- Amperage: 15A AC
- Actuator Style: Flat Rocker
- Poles: 2
- Maximum Voltage: 240V AC
- Circuit Breaker Type: Magnetic Hydraulic—Trip free
- Terminal Stud Torque: 35 in-lb (3.95 Nm)
- Interrupt Capacity: 5000A
- Minimum Operating Temperature: -40° C
- Maximum Operating Temperature: 85° C
- Mounting Screw: #6-32 SS
- Mounting Screw Torque: 8 in-lb (0.9 Nm)
- Switching Cycles: 10000
- Weight: 0.23lb (0.1 kg)
