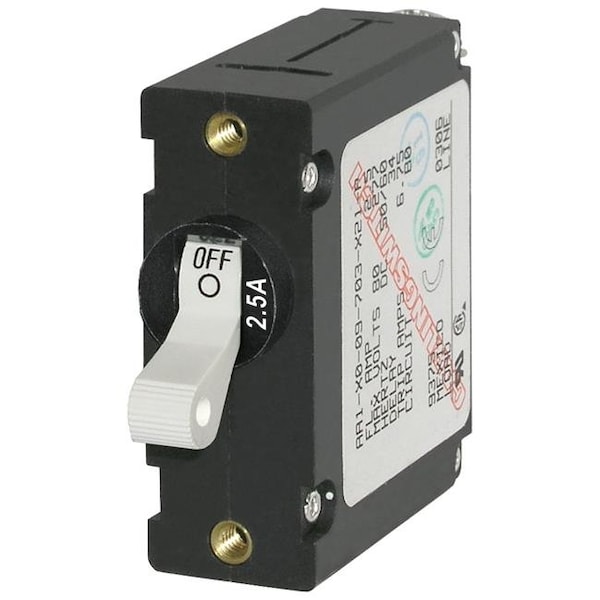

Circuit Breaker, A Series, 2.5A, 1 Pole, 240V AC, 7.5kA at 65V DC
Mfr # 7197
Zoro # G103920998
product price: $41.57
/eaKey Features
Series
A
Amps
2.5A
Number of Poles
1
AC Voltage Rating
240V AC
Circuit Breaker Actuator
Toggle
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
7197
Zoro #
G103920998
UPC #
632085071974
Country of Origin
China
Dimensions
Width
3/4 in
Depth
2.722 in
Height
2 in
Details
Item
Circuit Breaker
Series
A
Amps
2.5A
Number of Poles
1
AC Voltage Rating
240V AC
Circuit Breaker Actuator
Toggle
Max. AIR Rating
7.5kA at 65V DC
Trip Type
Hydraulic Magnetic
Terminal Connection
Screw
DC Voltage Rating
32V DC
Description
Features
- 7917 A-Series Single Pole White Toggle Circuit Breaker
- Meets American Boat and Yacht Council (ABYC) standards
- The industry standard circuit breaker for Blue Sea Systems" electrical panels
- Combines swtiching and circuit protection into a single device
- Trip Free design cannot be held "ON" during fault current condition
- Amperage: 2.5A AC / 2.5A DC
- Actuator Style: Toggle
- Poles: 1
- Maximum Voltage: 250V AC / 65V DC
- Circuit Breaker Type: Magnetic Hydraulic - trip free
- Interrupt Capacity: 3000A @ 120V AC / 1500A @ 250V AC [TUV] / 3000A @ 250V AC [UL 1077] / 7500A @ 65V DC
- Minimum Operating Temperature: -40° C
- Maximum Operating Temperature: 85° C
- Mounting Screw: #6-32 Stainless Steel
- Mounting Screw Torque: 6 in-lb (0.68 Nm)
- Screw Terminal Torque: 14 in-lb (1.58 Nm)
- Switching Cycles: 10000
- Terminal Screw: #10-32 Stainless Steel
- Weight: 0.4 lbs
