  9. Circuit Breaker, A Series, 40A, 2 Pole, 120/240V AC, 5kA at 32V DC
Shop All Circuit Breakers
Blue Sea Systems

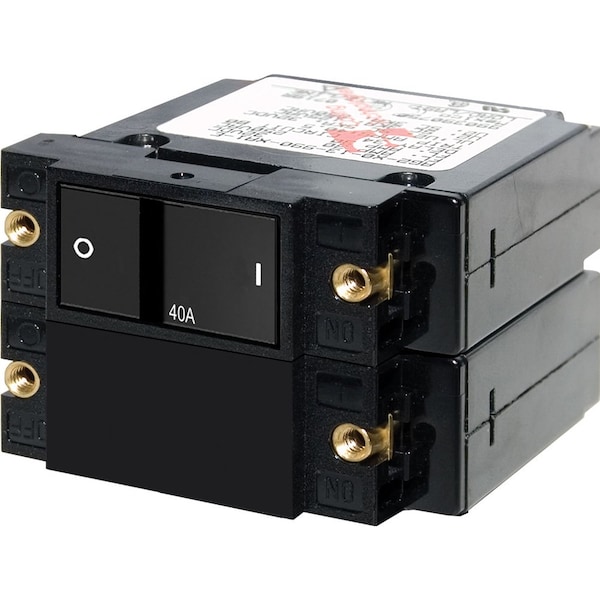

Circuit Breaker, A Series, 40A, 2 Pole, 120/240V AC, 5kA at 32V DC

product price: $39.99
/ea
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Series A
  • Amps 40A
  • Number of Poles 2
  • AC Voltage Rating 120/240V AC
  • Circuit Breaker Actuator Flat Rocker
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Width 1-1/2 in
Depth 2.4 in
Height 2.31 in

Details

Item Circuit Breaker
Series A
Amps 40A
Number of Poles 2
AC Voltage Rating 120/240V AC
Circuit Breaker Actuator Flat Rocker
Max. AIR Rating 5kA at 32V DC
Trip Type Hydraulic Magnetic
Terminal Connection Screw
DC Voltage Rating 32V DC

Description

A-Series Flat Rocker Circuit Breaker - Double Pole - 40A
Features:
  • Color actuator indicates "OFF" position
  • "Trip Free" design cannot be held "ON" during fault current condition
  • International ON/OFF symbols support vertical or horizontal mounting

Specifications:
  • Amperage : 40A AC / 40A DC
  • Actuator Style: Flat Rocker
  • Poles: 2
  • Maximum Voltage: 120V AC / 240V AC / 32V DC
  • Circuit Breaker Type: Magnetic Hydraulic - trip free
  • Interrupt Capacity: 3000A @ 240V AC / 1500A @ 240V AC[TUV] / 5000A @ 32V DC
  • Minimum Operating Temperature: -40° C
  • Maximum Operating Temperature: 85° C
  • Mounting Screw: #6-32 Stainless Steel
  • Mounting Screw Torque: 6 in-lb (0.68 Nm)
  • Screw Terminal Torque: 14 in-lb (1.58 Nm)
  • Switching Cycles: 10000
  • Terminal Screw: #10-32 Stainless Steel
  • Weight: 0.38lb (0.17 kg)

Restrictions

  • WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, and Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
