Shop BLUE SEA SYSTEMS

Circuit Breaker, A Series, 50A, 2 Pole, 120/240V AC, 5kA at 32V DC

  • Mfr # 7577

  • Zoro # G402943322

product price:
$
59.15
/ea

Key Features

Series
A
Amps
50 A
Number of Poles
2
AC Voltage Rating
120/240V AC
Circuit Breaker Actuator
Raised Rocker
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
7577
Zoro #
G402943322
UPC #
632085075774
Country of Origin
Mexico

Dimensions

Width
1-1/2 in
Depth
2.40 in
Height
2.31 in

Details

Item
Circuit Breaker
Series
A
Amps
50 A
Number of Poles
2
AC Voltage Rating
120/240V AC
Circuit Breaker Actuator
Raised Rocker
Max. AIR Rating
5kA at 32V DC
Trip Type
Hydraulic Magnetic
Terminal Connection
Screw
DC Voltage Rating
32V DC

Description

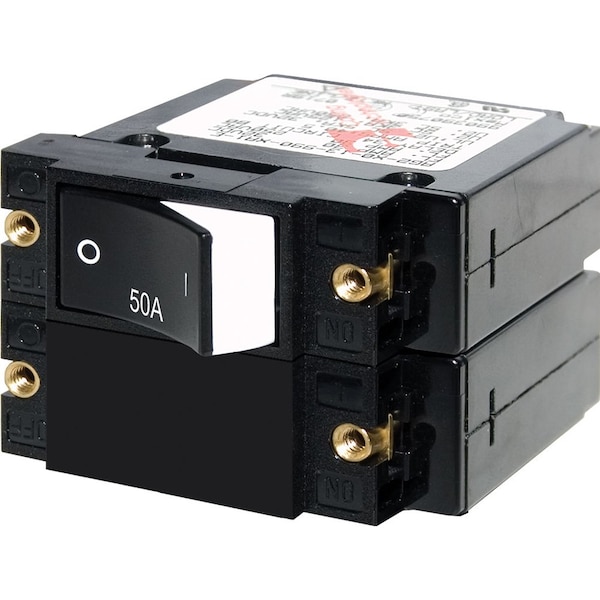

A-Series Raised Rocker Circuit Breaker - Double Pole - 50A
Features:
  • Color actuator indicates "OFF" position
  • "Trip Free" design cannot be held "ON" during fault current condition
  • International ON/OFF symbols support vertical or horizontal mounting

Specifications:
  • Amperage: 50A AC / 50A DC
  • Actuator Style: Raised Rocker
  • Poles: 2
  • Maximum Voltage: 120V AC / 240V AC / 32V DC
  • Circuit Breaker Type: Magnetic Hydraulic - trip free
  • Interrupt Capacity: 3000A @ 240V AC / 1500A @ 240V AC[TUV] / 5000A @ 32V DC
  • Minimum Operating Temperature: -40° C
  • Maximum Operating Temperature: 85° C
  • Mounting Screw: #6-32 Stainless Steel
  • Mounting Screw Torque: 6 in-lb (0.68 Nm)
  • Screw Terminal Torque: 14 in-lb (1.58 Nm)
  • Switching Cycles: 10000
  • Terminal Screw: #10-32 Stainless Steel
  • Weight: 0.38lb (0.17 kg)

Restrictions

WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, and Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
