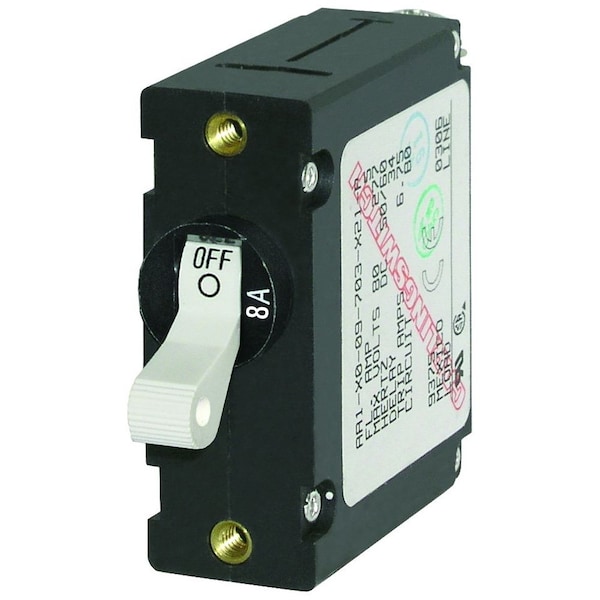

Circuit Breaker, A Series, 8A, 1 Pole, 240V AC, 7.5kA at 65V DC
Mfr # 7299
Zoro # G802942802
product price: $22.99
/eaKey Features
Series
A
Amps
8A
Number of Poles
1
AC Voltage Rating
240V AC
Circuit Breaker Actuator
Toggle
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
7299
Zoro #
G802942802
UPC #
632085072995
Country of Origin
Mexico
Dimensions
Width
3/4 in
Depth
2.722 in
Height
2 in
Details
Item
Circuit Breaker
Series
A
Amps
8A
Number of Poles
1
AC Voltage Rating
240V AC
Circuit Breaker Actuator
Toggle
Max. AIR Rating
7.5kA at 65V DC
Trip Type
Hydraulic Magnetic
Terminal Connection
Screw
DC Voltage Rating
65V DC
Description
AC / DC Single Pole Magnetic World Circuit Breaker
The World Circuit Breaker meets all American Boat and Yacht Council (ABYC) Standards, is UL 1077 Recognized, TUV Certified, CE marked for Europe, and CSA Certified for Canada.
PN: 7299
Color: White
Amperage: 8 Amp
Delay: Standard
Features:
Specifications Circuit Breaker TypeMagnetic Hydraulic - Trip FreeMaximum Voltage277 Volts AC / 65 Volts DCRated Switch Cycles10,000@rated amperage and voltage
The World Circuit Breaker meets all American Boat and Yacht Council (ABYC) Standards, is UL 1077 Recognized, TUV Certified, CE marked for Europe, and CSA Certified for Canada.
PN: 7299
Color: White
Amperage: 8 Amp
Delay: Standard
Features:
- The industry standard circuit breaker for Blue Sea Systems electrical panels
- Combines switching and circuit protection into a single device
- Single pole Quick Trip models are designed specifically for electronics protection
- "Trip Free" design cannot be held "ON" during fault current condition
Specifications Circuit Breaker TypeMagnetic Hydraulic - Trip FreeMaximum Voltage277 Volts AC / 65 Volts DCRated Switch Cycles10,000@rated amperage and voltage
