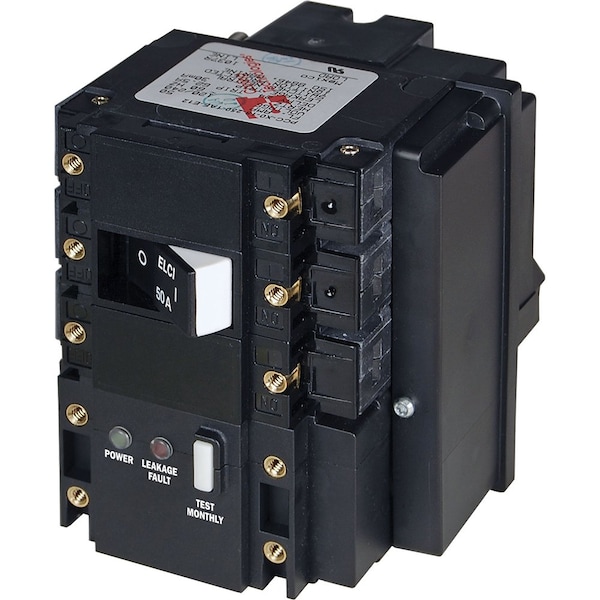

Blue Sea Systems Circuit Breaker, C Series, 50A, 3 Pole, 120/240V AC, 5kA 3104 - main

Circuit Breaker, C Series, 50A, 3 Pole, 120/240V AC, 5kA

  • Mfr # 3104

  • Zoro # G102942694

product price: $697.99
/ea
Free Shipping & Returns

Key Features

Series
C
Number of Poles
3
AC Voltage Rating
120/240V AC
Circuit Breaker Actuator
Flat Rocker
Circuit Breaker Mounting Style
Surface Mount/DIN Rail
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3104
Zoro #
G102942694
UPC #
632085031046
Country of Origin
Mexico

Dimensions

Width
2.98 in
Depth
3.94 in
Height
3.52 in

Details

Item
Circuit Breaker
Series
C
Amps
50A
Number of Poles
3
AC Voltage Rating
120/240V AC
Circuit Breaker Actuator
Flat Rocker
Circuit Breaker Mounting Style
Surface Mount/DIN Rail
Max. AIR Rating
5kA
Trip Type
Hydraulic Magnetic
DC Voltage Rating
Not Rated

Description

C-Series ELCI Main Circuit Breaker - 120/240V AC 50A

Features:

  • Provides over current and leakage protection per ABYC E-11 for whole boat shore power protection
  • Meets UL 1500 external ignition protection requirements
  • Trips on short circuit, overload, or leakage to ground
  • Front panel mount—installed in a power distribution panel

Specifications:

  • Amperage: 50A
  • Actuator Style: Flat Rocker
  • Poles: 3
  • Ignition Protected: Yes
  • Max Voltage: 120VAC per pole/240VAC per pole
  • Circuit Breaker Type: Magnetic Hydraulic - trip free
  • Interrupt Capacity: 5000A
  • Minimum Operating Temperature: -35 degrees C
  • Max Operating Temperature: 66 degrees C
  • Leakage Trip Amps: 30mA

Restrictions
