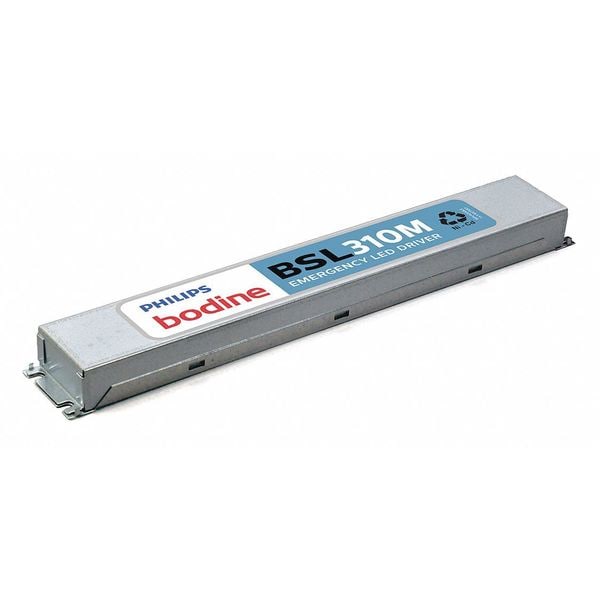

Bodine Lighting Ballast, 2-1/4" W x 1-3/16" H BSL310M - main

Lighting Ballast, 2-1/4" W x 1-3/16" H

  • Mfr # BSL310M

  • Zoro # G5076360

product price: $166.99
/ea
Free Shipping & Returns

Key Features

Item - Emergency Lighting and Exit Signs
Emergency Lighting Driver
Lamp Watts - Emergency Lighting and Exit Signs
4.0
Lamp Type - Fluorescent Lighting Battery Backup Systems
LED
Initial Lumens - Emergency Lighting and Exit Signs
Up to 1300
Housing Material
Galvanized Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BSL310M
Zoro #
G5076360
UPC #
663015109528
Country of Origin
Mexico

Dimensions

Length - Emergency Lighting and Exit Signs
15-11/32"
Width
2 1/4 in
Height
1 3/16 in
Length
15 3/8 in

Details

Item - Emergency Lighting and Exit Signs
Emergency Lighting Driver
Lamp Watts - Emergency Lighting and Exit Signs
4.0
Lamp Type - Fluorescent Lighting Battery Backup Systems
LED
Initial Lumens - Emergency Lighting and Exit Signs
Up to 1300
Housing Material
Galvanized Steel
Voltage - Emergency Lighting and Exit Signs
120/277
Number of Lamps Supported
1
Standards
CA Title 20, CSA 22.2 No 223-M91, CSA C22.2 No.141, RoHS Compliant, UL 1310 Certified, UL 924
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Battery Type
Nickel Cadmium
Emergency Illumination Time - Emergency Lighting and Exit Signs
90 min.
Item
LED Emergency Driver
Initial Lumens
Fixture Dependent
Input Voltage
120 to 277V AC
Emergency Illumination Time
90 min
Includes
Parts Kit with Labels
Number of Bulbs Supported
1
Case Form Factor
Long
Bulb Watts
10.4 W
Driver Mounting Location
Within Fixture
Max. Case Temp.
131 Degrees F
CA Title 20 Compliant
Yes
Frequency
50/60 Hz
Ouput Constant
Regulated Output Wattage
Profile
Standard Profile
Meets Class 2 Electrical Wiring
Meets Class 2
Wiring Connection
Wiring Attached
Driver Class
Class 2
Output Technology
Fixed
Total Harmonic Distortion
0 %
Intended LED Usage
Fixture Array, Tubes
For Use With
LED Fixture or Type C T8
Max. Bulb Watts
10.4 W
Recharge Time
24 hr
Brand and Series
Bodine
Housing Color
Silver

Description

Bodine, LED Emergency Driver, LED Bulb Type, Input Voltage 120 to 277V AC, Number of Bulbs Supported 1, Bulb Watts 10.4 W, Max. Bulb Watts 10.4 W, Initial Lumens Fixture Dependent, 90 min Emergency Illumination Time, CA Title 20 Compliant Yes, 15 3/8 in Length, 2 1/4 in Width, 1 3/16 in Height, Standard Profile, Galvanized Steel Housing Material
