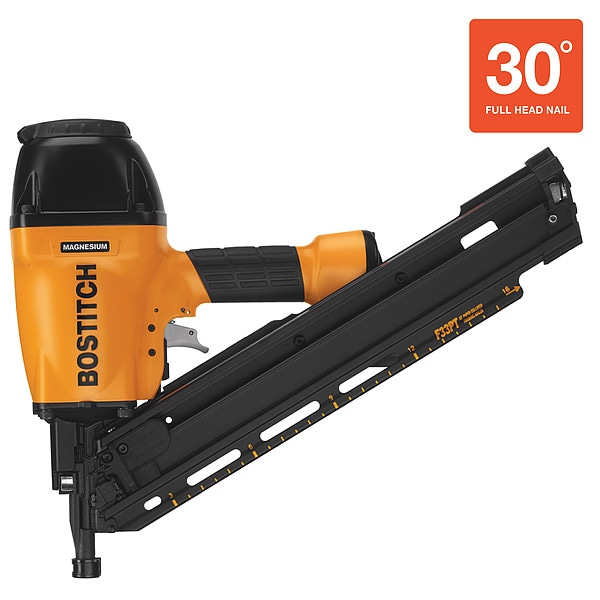

Air Framing Nailer, Clipped, 33 Deg, Paper

  • Mfr # F33PT

  • Zoro # G1162192


product price: $280.99
/ea
Free Shipping & Returns

Key Features

Air Inlet
1/4 in NPT
Features
Push Button Depth Adjustment
Includes
Metal Connector Nose
Firing Mode
Sequential
Tool Weight
7.9 lb
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
F33PT
Zoro #
G1162192
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Height
14 1/4 in
Shank Dia.
0.113 in to 0.162 in
Width
5 1/8 in
Length
18 in
Overall Height
14 in
Overall Length
18 in
Overall Width
5 1/8 in
For Nail Penny Size
6d, 7d, 8d, 9d, 10d, 11d, 12d, 16d
Min. Hose Size
1/4 in
Depth Control
Yes
For Nail Shank Diameter
0.131 in to 0.162 in
For Nail Length Range
2 in to 3 1/2 in

Details

Item
Nail Gun
Air Inlet
1/4 in NPT
Features
Push Button Depth Adjustment
Includes
Metal Connector Nose
Firing Mode
Sequential
Tool Weight
7.9 lb
Collation Type
Paper
Tip
Nonmarring
Exhaust
Adjustable
Style
Angled
Fastener Range
1-1/2 in to 3-1/2 in
Housing Material
Magnesium
Max. Pressure
120 psi
Magazine Capacity
85
Collation Angle
30 Degrees
Head Style
Clipped
For Use With
33 Degrees Paper Collated Nails
Required Pressure
70 to100 psi
CFM per Shot
0.075
Color
Yellow
Standards
ANSI
Duty Rating
Industrial Duty
Collation Style
Strip
Handle Type
Pistol Grip
Nail Capacity
80
Exhaust Location
Top
Nail Gun Type
Framing
Built-In Light
No
Air Consumption
8.7 cfm
For Nail Head Style
Various
Power Source
Air Powered
Max. Air Pressure
120 psi
Min. Air Pressure
80 psi
Air Pressure Range
80 to 120 psi
Air Pressure
80 psi
Collation angle
30 Degrees

Description

Air Nail Gun, Power Source Air-Powered, Air Consumption 8.7 cfm, Air Inlet 1/4 in NPT, Air Pressure 80 psi, Air Pressure Range 80 to 120 psi, Max. Air Pressure 120 psi, Min. Air Pressure 80 psi, Min. Hose Size 1/4 in, Exhaust Location Top, Tool Brand Bostitch, Firing Mode Sequential, Tip Nonmarring, Depth Control Yes, Collation Style Strip, Collation Type Paper, Collation Angle 30 Degrees , For Nail Head Style Various, For Nail Length Range 2 in to 3 1/2 in
