Bostitch

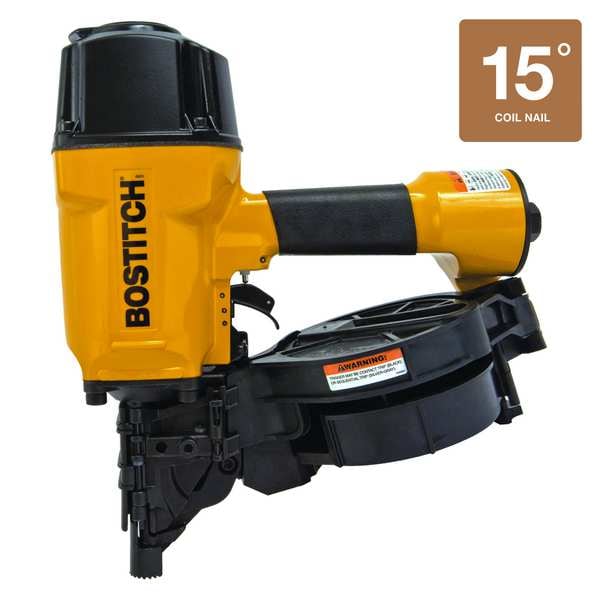

Air Framing Nailer, Full Rnd, 15 Deg, Wire

product price: $429.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Head Style Full Round
  • Collation Angle 15 Degrees
  • Collation angle 15 Degrees
  • Collation Type Wire
  • Fastener Range 1-1/2 in to 3-1/4 in
See all product information

Product Information

Dimensions

Shank Dia. 0.099 in to 0.120 in
Width 5 9/16 in
Height 13 in
Length 12 1/16 in
Overall Width 12 in
Overall Height 13 in
Overall Length 12 in
For Nail Penny Size 4d, 5d, 6d, 7d, 8d, 9d, 10d, 11d, 12d
For Nail Length Range 1 1/2 in to 3 1/4 in
Min. Hose Size 1/4 in
For Nail Shank Diameter 0.099 in to 0.120 in
Depth Control Yes

Details

Item Nail Gun
Head Style Full Round
Collation Angle 15 Degrees
Collation angle 15 Degrees
Collation Type Wire
Fastener Range 1-1/2 in to 3-1/4 in
Magazine Capacity 300
Tool Weight 8.4 lb
For Use With 1-1/2 in to 3-1/4 in Coil Nails
Firing Mode Bump
Air Inlet 1/4 in NPT
Tip Standard
Exhaust Front
Style Straight
CFM per Shot 0.079
Housing Material Aluminum
Features Large Capacity
Required Pressure 70 to100 psi
Color Yellow
Max. Pressure 70 to 100 psi
Standards ANSI
Handle Type Pistol Grip
Max. Air Pressure 100 psi
For Nail Head Style Round
Nail Gun Type Framing
Built-In Light No
Air Pressure 70 psi
Exhaust Location Top
Air Consumption 7.8 cfm
Min. Air Pressure 70 psi
Duty Rating Industrial Duty
Nail Capacity 300
Power Source Air Powered
Collation Style Coil
Air Pressure Range 70 to 100 psi

Description

Nail Gun, Power Source Air Powered, Air Consumption 7.8 cfm, Air Inlet 1/4 in NPT, Air Pressure 70 psi, Air Pressure Range 70 to 100 psi, Max. Air Pressure 100 psi, Min. Air Pressure 70 psi, Min. Hose Size 1/4 in, Exhaust Location Top, Tool Brand Bostitch, Firing Mode Bump, Tip Standard, Depth Control Yes, Collation Style Coil, Collation Type Wire, Collation Angle 15 Degrees , For Nail Head Style Round, For Nail Length Range 1 1/2 in to 3 1/4 in
