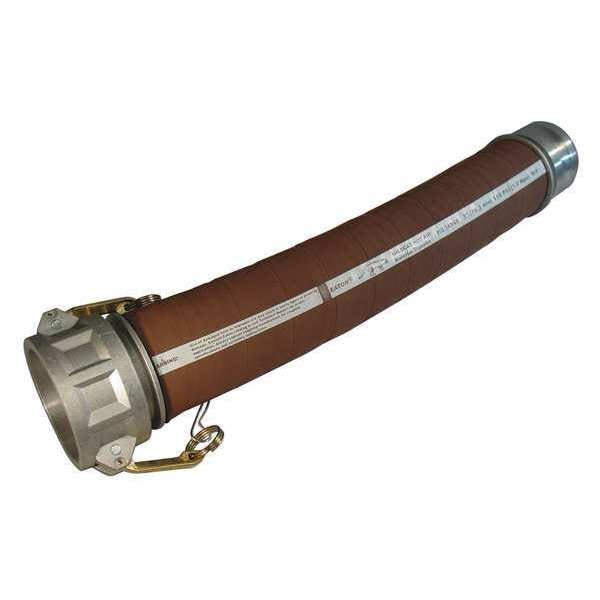

3" ID EPDM Material Hose 150 PSI BN

Mfr # H034948-20-ALCE
Zoro # G3719558

548.99

Free Shipping & Returns

Key Features

Hose Inside Dia.

3 in

Hose Length

20 ft

Hose Color

Brown

Temp. Range

-40 Degrees to 158 Degrees F

Hose Cover Material

EPDM

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Details

MFR #: H034948-20-ALCE
Zoro #: G3719558
UPC #: -
Country of Origin: Türkiye
Item: Material Hose
Hose Color: Brown
Temp. Range: -40 Degrees to 158 Degrees F
Hose Cover Material: EPDM
Safety Factor: 4:1
Cover Material: EPDM
Tube Material: EPDM
Color: Brown
Tube Material - Material Hose: EPDM
Type - Material Hose: Material Hose
Max. Pressure: 150 psi
Temp. Range (F): -40 to 158
Type: Hot Air
Max. Pressure (PSI): 150 psi
Max. Pressure - Material Hose: 150 psi
Fitting Type: Cam and Groove C x Cam and Groove E
Fitting Material: Aluminum x Aluminum
Max. Working Pressure @ 70 F: 150 psi
Hose Tube Material: EPDM
For Media Type: Acetic Acid,Chromic Acid,Citric Acid,Formic Acid,Hydrochloric Acid,Hydrofluoric Acid,Nitric Acid,Phosphoric Acid (40% Solution),Sulfuric Acid,Ketones,Isopropanol,Methanol,Antifreeze,Ethylene Glycol,Glycerin,Calcium Chloride,Sodium Bicarbonate,Cyclohexane,Ethyl Acetate,Formaldehyde,Ammonium Hydroxide,Potassium Hydroxide (50%),Water,Sodium Bisulfate,Sodium Bisulfite,Fertilizers,Air,Carbon Dioxide,Oxygen
Not Recommended Chemicals: Automatic Transmission Fluid,Biodiesel,Brake Fluid,Diesel Fuel,E85,Fuel Oil,Gasoline,Heptane,Hexane,Hydraulic Fluid (Petroleum),Hydraulic Fluid (Synthetic),Hydrofluoric Acid (75%),Hydrofluoric Acid 100%,Kerosene,Lacquer Thinners,Lubricated Air,Methyl Chloride,Mineral Oil,Motor Oil,Naphtha,Paint,Sodium Hydroxide/Caustic Soda (20%),Sodium Hydroxide/Caustic Soda (50%),Sodium Hydroxide/Caustic Soda (80%),Sodium Hypochlorite/Bleach (to 20%),Solvents,Steam,Stoddard Solvent (Mineral Spirits),Sulfuric Acid (10% - 75%),Sulfuric Acid (75% - 100%),Toluene,Trichlorethylene (50%),Turpentine,Vegetable Oil,Xylene
Hose Fitting A Type: Cam and Groove C
Hose Fitting B Type: Cam and Groove E
Hose Fitting B Material: Aluminum
Hose Configuration: Coupled Assembly
Hose Fittings: Aluminum 3 in Cam and Groove C x Aluminum 3 in Cam and Groove E
Hose Fitting A Material: Aluminum
Compatible Chemicals: Acetic Acid (Glacial),Acetic Acid 20%,Chromic Acid 5%,Chromic Acid 10%,Citric Acid 50%,Formic Acid,Hydrochloric/Muriatic Acid (20%),Hydrochloric/Muriatic Acid (37%),Hydrochloric/Muriatic Acid (100%),Hydrofluoric Acid (20%),Nitric Acid (10% Solution),Nitric Acid (20% Solution),Nitric Acid (50% Solution),Nitric Acid (Concentrated Solution),Phosphoric Acid (40% Solution),Sulfuric Acid (to 10%),Methyl Ethyl Ketone (MEK),Isopropyl (Isopropanol),Methyl (Methanol),Antifreeze (Coolant),Ethylene Glycol,Glycerin,Calcium Chloride,Sodium Bicarbonate (10%),Cyclohexane,Ethyl Acetate,Formaldehyde 40%,Formaldehyde,Ammonium Hydroxide,Potassium Hydroxide (50%),Fresh Water,Salt Water,Sodium Bisulfate,Sodium Bisulfite,Fertilizers,Air,Carbon Dioxide,Oxygen

Description

Material Hose, Hose Inside Dia. 3 in, Hose Length 20 ft, Hose Tube Material EPDM, Hose Cover Material EPDM, Hose Color Brown, Max. Working Pressure @ 70 F 150 psi, Safety Factor 4:1, Temp. Range -40 Degrees to 158 Degrees F, Hose Configuration Coupled Assembly, Hose Fitting A Material Aluminum, Hose Fitting B Material Aluminum, Hose Fitting A Type Cam and Groove C, Hose Fitting B Type Cam and Groove E, Hose Fitting A Size 3 in, Hose Fitting B Size 3 in
