Boston Gear

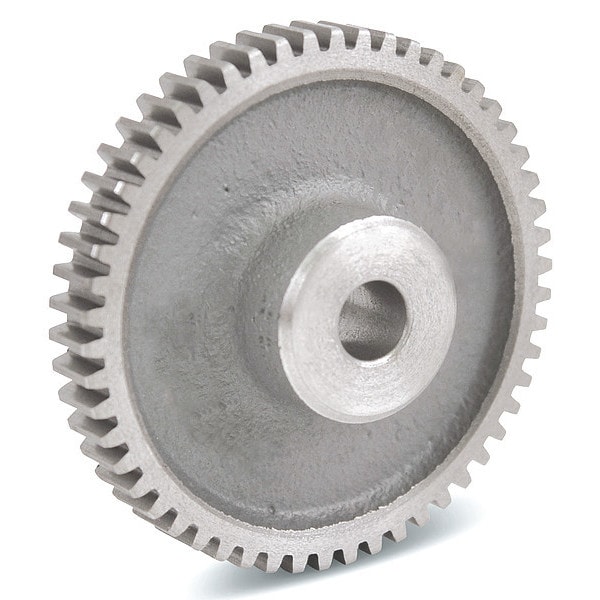

Gear, Spur, 10 Pitch
- Zoro #: G2018012
- Mfr #: NF40
Hover or click to zoom Tap to zoom
Help us improve our
product images
Key Features
- Item: Spur Gear
- Pitch: 10
- Pitch Dia. (In.): 4.0 in
- Face Width (In.): 1.0 in
- Number of Teeth: 40
- Bore Dia. (In.): 0.875 in
- Outside Dia. (In.): 4.2 in
- Material: Cast iron
$82.41
Ships from United States
Subtotal: $82.41
Sign In For Free Shipping On $50+ Orders
30-Day Returns
125 U.S.-Based Customer Service Agents
Boston Gear #NF40 Specifications
- Zoro #: G2018012
- Mfr #: NF40
- UPC #: 781711103203
- Item: Spur Gear
- Pitch: 10
- Pitch Dia. (In.): 4.0 in
- Face Width (In.): 1.0 in
- Number of Teeth: 40
- Bore Dia. (In.): 0.875 in
- Outside Dia. (In.): 4.2 in
- Material: Cast iron
- Pressure Angle (Deg.): 14.5
- Overall Length (In.): 1.88 in
- Keyway: N
- Hub Projection (In.): 0.88 in
- Function: Transmitting Motion and Power Between Parallel Shafts, Minimizes Backlash to Perform Smooth and Quiet Operation, Close Concentricity between Bore, Pitch Diameter and Outside Diameter Facilitates Reboring Modifications
- Agency Compliance: AGMA
- Setscrew: Not Included
- Hub Dia. (In.): 2.12 in
- For Use With: 1L903, 1L904
- Pitch Diameter: 4 in
- Hub Design: Hub without Set Screw
- Standards: AGMA
- Gear Material & Finish: Cast Iron
- Compatible Gear Rack Grainger Part Number: 1L903, 1L904
- Compatible Gear Rack Manufacturer Part Number: L516-6, L517-6
- Pressure Angle: 14.5 Degrees
- Outside Diameter: 4.2 in
- (gear type builder): NF40
- Face Width: 1 in
- System of Measurement: Inch
- Bore Diameter: 7/8 in
- Overall Length: 1.88 in
- Diametral Pitch: 10
- Hub Diameter: 2.12 in
- Hub Projection: 0.88 in
- Country of Origin (subject to change): United States
Description
Spur Gear, Bore Diameter 7/8 in, Hub Diameter 2.12 in, Hub Projection 0.88 in, Face Width 1 in, Pitch Diameter 4 in, Material Cast Iron, Pressure Angle 14.5 Degrees , Compatible Gear Rack Grainger Part Number 1L903, 1L904, Compatible Gear Rack Manufacturer Part Number L516-6, L517-6, Diametral Pitch 10, Keyway No
