Boston Gear

Speed Reducer, C-Face, 56C, 60:1

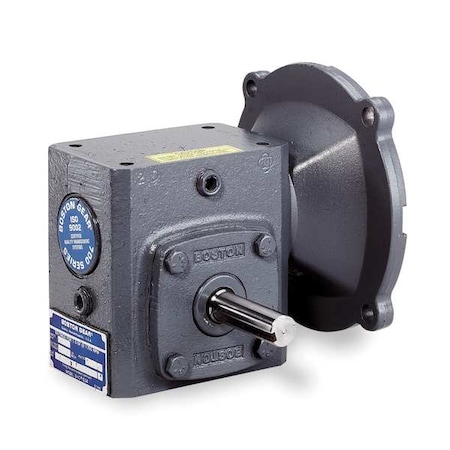

Boston Gear Speed Reducer, C-Face, 56C, 60:1 F724-60-B5-G
Tap to zoom
Hover or click to zoom
Feedback Help us improve our product images
$777.94
  • Item: Speed Reducer
  • Nominal Ratio: 60:1
  • Input RPM: 1750 rpm
See full product details
This item ships free.
Total: $777.94

Boston Gear #F724-60-B5-G Specifications

  • Item: Speed Reducer
  • Nominal Ratio: 60:1
  • Input RPM: 1750 rpm
  • Bore Dia.: 1-1/8"
  • Nominal Output RPM: 29
  • Overall Length: 10.18"
  • Standards: AGMA; ISO 9001:2015
  • Max. Output Torque: 670 in-lb
  • Seal Type: Double Lip
  • Housing Material: Cast iron
  • Mounting: Any Position
  • Pinion Material: Hardened Steel
  • Output Shaft Dia.: 1 1/8 in
  • Lubrication: Klubersynth UH1 6-460
  • Solid/Hollow Output Shaft: Solid
  • Worm Gear Material: Bronze
  • Output Torque @ 1/40 HP: 3600 in.-lb.
  • Base: Optional
  • Bearings: Tapered Roller
  • Dimension U: 1 1/8 in
  • Overhung Load: 900 lb
  • Output Torque @ 3/4 HP: 670 in-lb
  • Gear Material: Hardened and Ground Steel
  • Single/Double Output/Universal: Single Output
  • Shaft Orientation: Right Angle
  • Speed Reducer Type: C-Face
  • Rotation: Forward/Reversible
  • Finish: Powdered Epoxy Paint
  • Worm Center Distance: 2.38 in
  • Reducer Model No.: F724-60-B5-G
  • Duty: Standard
  • Output Shaft Height: 2 1/2 in
  • Frame: 56c
  • Gear Type: Worm
  • Number of Stages: 1
  • Output Torque @ 1/2 HP: 440 in-lb
  • Max. Input HP: 0.5 hp
  • Nominal Output rpm: 29.2 rpm
  • Country of Origin (subject to change): United States
Feedback Help us improve our product information

Description

Speed Reducer, C-Face, Right Angle Shaft Orientation, Standard Duty, 1,750 Input RPM, 29 Nominal Output RPM, Worm Center Distance 2.38 in, Bore Dia. 5/8 in, 56C Frame, Overhung Load 900 lb, 60:1 Nominal Ratio, Max. Input HP 0.5 hp, Max. Output Torque 670 in-lb, Number of Stages 1, Forward/Reversible Rotation, Optional Base, Any Position Mounting, Tapered Roller Bearings, Hardened Steel Pinion Material, Worm Gear Type, Cast Iron Housing Material, Single Output, Output Shaft Dia. 1 1/8 in
