  5. Pressure Gauge, 0 to 160 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location

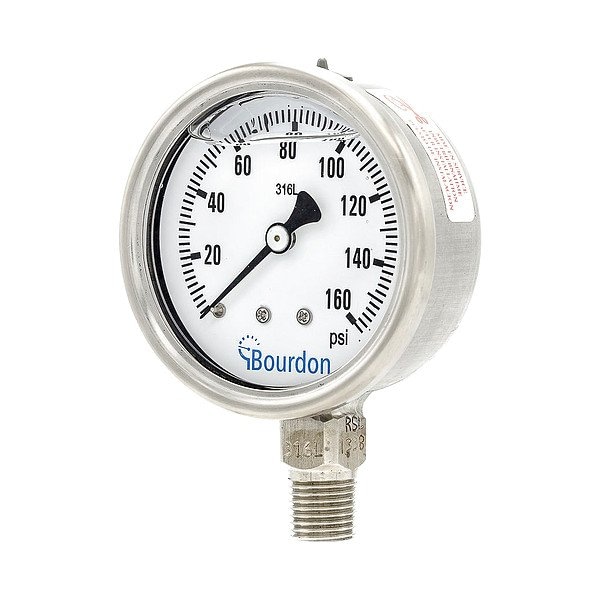

Bourdon Pressure Gauge, 0 to 160 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location MEX3-D52.H22/0133 - main

Pressure Gauge, 0 to 160 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # MEX3-D52.H22/0133

  • Zoro # G3774141

product price:  $87.45
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-1.60%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
2 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
MEX3-D52.H22/0133
Zoro #
G3774141
UPC #
-
Country of Origin
France

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 1/2 in
Gauge Connection Size
1/4 in
Manufacturers Warranty Length
1 yr
Gauge Nominal Dial Size
2 1/2 in
Connection Size
1/4 in NPT
Nominal Dial Size
2 1/2 in
Manufacturer Warranty Length
1 yr
Case Diameter
68.8 mm
Nominal Dial Diameter
63 mm
Case Depth
30.2 mm

Details

Item
Pressure Gauge
Accuracy
+/-1.60%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Industrial
Gauge Case Material
304 Stainless Steel
Series
MEX3
Lens Material
Polycarbonate
Primary Pressure Range
0 to 160
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
Yes
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Calibration Certificate Included
No
For Use With
Industrial Applications, Media Compatible
Gauge Primary Range Smallest Graduation
20
Includes
Vent Plug
Connection Location
Lower
Graduations
20 psi
Gauge Special Options
IP65 Protection Rating
Liquid Filled
Yes
Smallest Graduation
2 psi
Characteristics
Crimped Bezel
Gauge Connection Location
Bottom
Gauge Socket Material
316L Stainless Steel
Case Color
Metallic
Gauge Sensor Material
316L Stainless Steel
Gauge Accuracy
+/-1.60%
Gauge Primary Range Values
0 to 160
Gauge Connection Type
MNPT
Gauge Case Color
Polished Stainless Steel
Range
0 to 160 psi
Operating Temp. Range
-4 Degrees to 158 Degrees F
Gauge Secondary Range Units
Bar
Gauge Lens Material
Plastic
Gauge Primary Range Units
psi
Gauge Secondary Range Values
-100 to 0
Gauge Primary Range Numbered Graduations
2
Gauge Filled With
Glycerin
Socket Material
316L Stainless Steel
Case Material
Stainless Steel
Standards
ATEX Ex II 2 GDc-IM2c, EN 837-1
Connection Type
MNPT
Gauge Case Liquid
Glycerin
Bezel Mounting Type
Crimped
Accuracy Grade
EN 837-1
Ambient Operating Temperature Range
-4 Degrees to 158 Degrees F
Cleaned for Oxygen Service
No
Includes Calibration Certificate
No
Sensor Material
316L Stainless Steel
Scale Type
Single
Primary Scale Minor Graduations
20
Primary Scale Numeric Increments
2
Includes Vent Plug
Yes
Non-Sparking
Yes
Vibration Resistance
Liquid-Filled
Pressure Gauge Type
Industrial Pressure Gauge
Process Connection Gender
Male
Dial Color
White
Accuracy Scale
Full Scale
Field Fillable
No
Removable Bezel
No
Includes Mounting Hardware
No
Freeze Resistant Movement
No
Pressure Range Type
Compound
Pointer Color
Black
Secondary Scale Units
bar
Operating Temperature Range
-4 Degrees to 158 Degrees F
Operating Temperature - Maximum
70 Degrees C
Compatible with Series
MEX3
Process Media Temperature - Maximum
158 Degrees F
NEMA Enclosure Rating
No Enclosure
Process Media Temperature - Minimum
-4 Degrees F
Primary Scale Pressure Measurement - Minimum
0 psi
Primary Scale Pressure Measurement - Maximum
160 psi
Compatible with Brand
Universal
Case Liquid
Glycerin
IP Rating
IP65
Operating Temperature - Minimum
-20 Degrees C
Primary Scale Vacuum Measurement - Minimum
0 psi
Primary Scale Vacuum Measurement - Maximum
160 psi
Bezel Material
Stainless Steel
Pointer Material
Aluminum
Bezel Gasket Material
Elastomer
Dial Face Material
Aluminum

Description

Pressure Gauge, Accuracy +/-1.60 Percent, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Metallic, Dry Dampening Feature Not Applicable, Dial Color White, Pressure Gauge Type Industrial Pressure Gauge, Liquid-Filled Case Yes, Panel-Mountable No, Socket Material 316L Stainless Steel, Sensor Material 316L Stainless Steel, Accuracy Grade EN 837-1, Series MEX3
