  5. Pressure Gauge, 0 to 200 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location

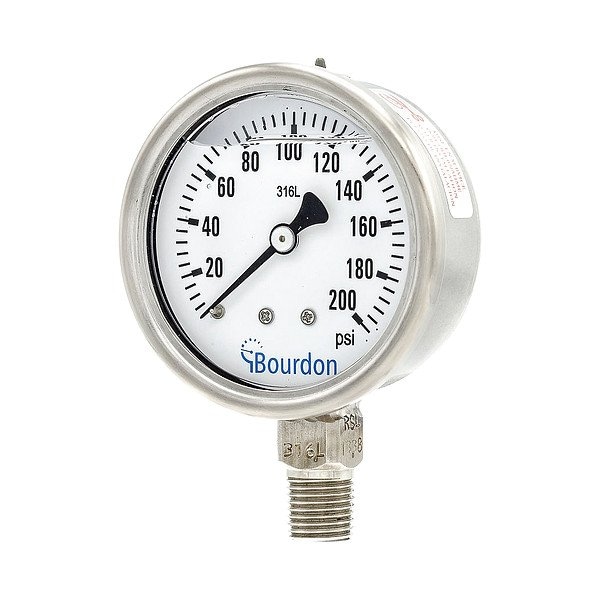

Bourdon Pressure Gauge, 0 to 200 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location MEX3-D52.H23/0133 - main
Shop BOURDON

Pressure Gauge, 0 to 200 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # MEX3-D52.H23/0133

  • Zoro # G5114720

product price:  $87.45
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-1.60%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
2 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MEX3-D52.H23/0133
Zoro #
G5114720
UPC #
-
Country of Origin
France

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 1/2 in
Manufacturers Warranty Length
1 yr
Gauge Connection Size
1/4 in
Connection Size
1/4 in NPT
Gauge Nominal Dial Size
2 1/2 in
Manufacturer Warranty Length
1 yr
Nominal Dial Size
2 1/2 in
Case Diameter
68.8 mm
Nominal Dial Diameter
63 mm
Case Depth
30.2 mm

Details

Item
Pressure Gauge
Accuracy
+/-1.60%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Industrial
Gauge Case Material
304 Stainless Steel
Series
MEX3
Lens Material
Polycarbonate
Primary Pressure Range
0 to 200
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
Yes
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Characteristics
Crimped Bezel
Gauge Primary Range Smallest Graduation
2
Graduations
20 psi
Connection Location
Lower
Range
0 to 200 psi
Operating Temp. Range
-4 Degrees to 158 Degrees F
Gauge Case Color
Polished Stainless Steel
Gauge Accuracy
+/-1.60%
Gauge Connection Type
MNPT
Smallest Graduation
2 psi
Gauge Lens Material
Plastic
Gauge Filled With
Glycerin
Gauge Primary Range Units
psi
Gauge Secondary Range Values
-100 to 0
Includes
Vent Plug
Gauge Sensor Material
316L Stainless Steel
Gauge Socket Material
316L Stainless Steel
Gauge Primary Range Values
0 to 200
Case Color
Metallic
Gauge Connection Location
Bottom
For Use With
Industrial Applications, Media Compatible
Gauge Primary Range Numbered Graduations
20
Gauge Special Options
IP65 Protection Rating
Gauge Secondary Range Units
Bar
Liquid Filled
Yes
Calibration Certificate Included
No
Socket Material
316L Stainless Steel
Case Material
Stainless Steel
Connection Type
MNPT
Standards
ATEX Ex II 2 GDc-IM2c, EN 837-1
Pressure Gauge Type
Industrial Pressure Gauge
Includes Calibration Certificate
No
Ambient Operating Temperature Range
-4 Degrees to 158 Degrees F
Primary Scale Numeric Increments
20
Removable Bezel
No
Accuracy Scale
Full Scale
Pressure Range Type
Compound
Dial Color
White
Non-Sparking
Yes
Primary Scale Minor Graduations
2
Scale Type
Single
Bezel Mounting Type
Crimped
Includes Vent Plug
Yes
Includes Mounting Hardware
No
Field Fillable
No
Vibration Resistance
Liquid-Filled
Process Connection Gender
Male
Freeze Resistant Movement
No
Gauge Case Liquid
Glycerin
Accuracy Grade
EN 837-1
Cleaned for Oxygen Service
No
Sensor Material
316L Stainless Steel
Pointer Color
Black
Secondary Scale Units
bar
Operating Temperature Range
-4 Degrees to 158 Degrees F
Process Media Temperature - Minimum
-4 Degrees F
Primary Scale Pressure Measurement - Minimum
0 psi
Process Media Temperature - Maximum
158 Degrees F
IP Rating
IP65
NEMA Enclosure Rating
No Enclosure
Primary Scale Pressure Measurement - Maximum
200 psi
Primary Scale Vacuum Measurement - Minimum
0 psi
Operating Temperature - Maximum
70 Degrees C
Compatible with Brand
Universal
Primary Scale Vacuum Measurement - Maximum
200 psi
Compatible with Series
MEX3
Case Liquid
Glycerin
Operating Temperature - Minimum
-20 Degrees C
Pointer Material
Aluminum
Dial Face Material
Aluminum
Bezel Gasket Material
Elastomer
Bezel Material
Stainless Steel

Description

Pressure Gauge, Accuracy +/-1.60 Percent, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Metallic, Dry Dampening Feature Not Applicable, Dial Color White, Pressure Gauge Type Industrial Pressure Gauge, Liquid-Filled Case Yes, Panel-Mountable No, Socket Material 316L Stainless Steel, Sensor Material 316L Stainless Steel, Accuracy Grade EN 837-1, Series MEX3
