  5. Pressure Gauge, 0 to 30 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location

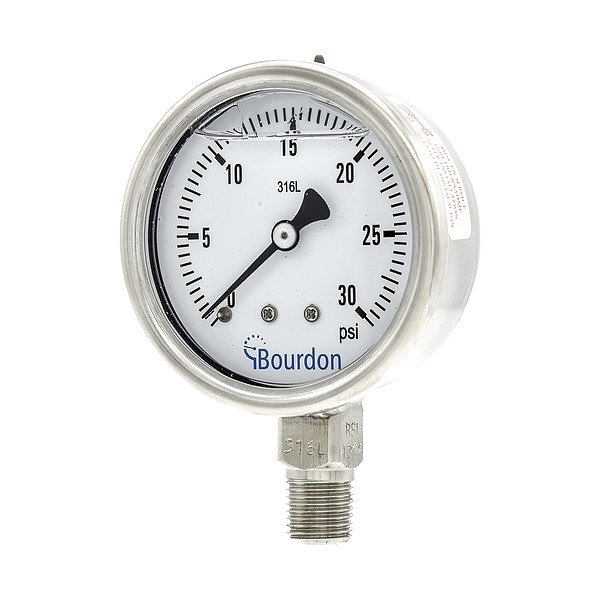

Bourdon Pressure Gauge, 0 to 30 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location MEX3-D52.H17/0133 - main

Pressure Gauge, 0 to 30 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # MEX3-D52.H17/0133

  • Zoro # G3773968

product price:  $87.45
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-1.60%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
2 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MEX3-D52.H17/0133
Zoro #
G3773968
UPC #
-
Country of Origin
France

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 1/2 in
Manufacturers Warranty Length
1 yr
Gauge Nominal Dial Size
2 1/2 in
Connection Size
1/4 in NPT
Gauge Connection Size
1/4 in
Nominal Dial Size
2 1/2 in
Manufacturer Warranty Length
1 yr
Case Diameter
68.8 mm
Nominal Dial Diameter
63 mm
Case Depth
30.2 mm

Details

Item
Pressure Gauge
Accuracy
+/-1.60%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Industrial
Gauge Case Material
304 Stainless Steel
Series
MEX3
Lens Material
Polycarbonate
Primary Pressure Range
0 to 30
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
Yes
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Connection Location
Lower
Smallest Graduation
0.5 psi
Gauge Special Options
IP65 Protection Rating
For Use With
Industrial Applications, Media Compatible
Gauge Primary Range Units
psi
Gauge Secondary Range Units
Bar
Graduations
5 psi
Gauge Primary Range Values
0 to 30
Gauge Accuracy
+/-1.60%
Liquid Filled
Yes
Gauge Sensor Material
316L Stainless Steel
Gauge Primary Range Smallest Graduation
5
Gauge Filled With
Glycerin
Gauge Primary Range Numbered Graduations
0.5
Characteristics
Crimped Bezel
Includes
Vent Plug
Gauge Connection Location
Bottom
Gauge Case Color
Polished Stainless Steel
Operating Temp. Range
-4 Degrees to 158 Degrees F
Case Color
Metallic
Range
0 to 30 psi
Gauge Secondary Range Values
-100 to 0
Calibration Certificate Included
No
Gauge Socket Material
316L Stainless Steel
Gauge Lens Material
Plastic
Gauge Connection Type
MNPT
Case Material
Stainless Steel
Socket Material
316L Stainless Steel
Connection Type
MNPT
Standards
ATEX Ex II 2 GDc-IM2c, EN 837-1
Includes Calibration Certificate
No
Dial Color
White
Pressure Gauge Type
Industrial Pressure Gauge
Pressure Range Type
Compound
Sensor Material
316L Stainless Steel
Removable Bezel
No
Includes Vent Plug
Yes
Cleaned for Oxygen Service
No
Vibration Resistance
Liquid-Filled
Gauge Case Liquid
Glycerin
Field Fillable
No
Bezel Mounting Type
Crimped
Scale Type
Single
Process Connection Gender
Male
Accuracy Scale
Full Scale
Accuracy Grade
EN 837-1
Primary Scale Minor Graduations
5
Primary Scale Numeric Increments
0.5
Ambient Operating Temperature Range
-4 Degrees to 158 Degrees F
Non-Sparking
Yes
Freeze Resistant Movement
No
Includes Mounting Hardware
No
Pointer Color
Black
Secondary Scale Units
bar
Operating Temperature Range
-4 Degrees to 158 Degrees F
Operating Temperature - Minimum
-20 Degrees C
Operating Temperature - Maximum
70 Degrees C
Process Media Temperature - Minimum
-4 Degrees F
NEMA Enclosure Rating
No Enclosure
Primary Scale Vacuum Measurement - Maximum
30 psi
Primary Scale Pressure Measurement - Minimum
0 psi
Process Media Temperature - Maximum
158 Degrees F
Case Liquid
Glycerin
Primary Scale Pressure Measurement - Maximum
30 psi
Compatible with Brand
Universal
IP Rating
IP65
Primary Scale Vacuum Measurement - Minimum
0 psi
Compatible with Series
MEX3
Bezel Material
Stainless Steel
Bezel Gasket Material
Elastomer
Dial Face Material
Aluminum
Pointer Material
Aluminum

Description

Pressure Gauge, Accuracy +/-1.60 Percent, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Metallic, Dry Dampening Feature Not Applicable, Dial Color White, Pressure Gauge Type Industrial Pressure Gauge, Liquid-Filled Case Yes, Panel-Mountable No, Socket Material 316L Stainless Steel, Sensor Material 316L Stainless Steel, Accuracy Grade EN 837-1, Series MEX3
