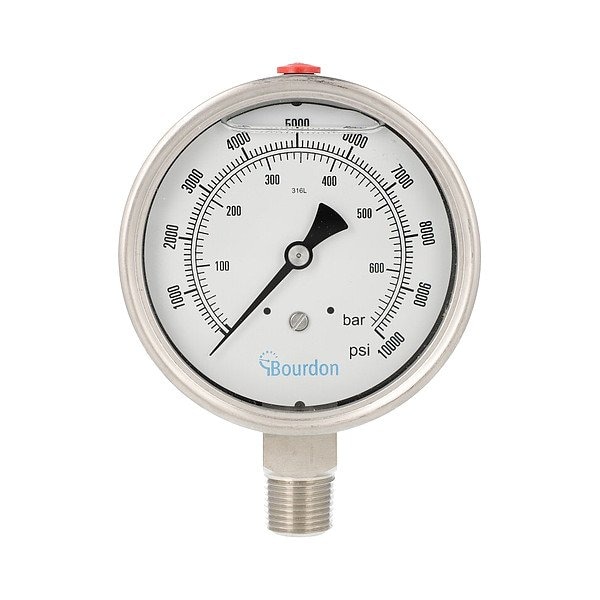

Bourdon Pressure Gauge, 1/2 in NPT, Bottom Location MEX5-D63.S40 - main

Pressure Gauge, 1/2 in NPT, Bottom Location

  • Mfr # MEX5-D63.S40

  • Zoro # G215271711

product price: $114.99
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-1.00%
Process Connection Location
Bottom
Process Connection Size
1/2 in
Process Connection Type
NPT
Series
MEX5
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MEX5-D63.S40
Zoro #
G215271711
UPC #
-
Country of Origin
France

Dimensions

Process Connection Size
1/2 in
Case Diameter
3.98 in
Nominal Dial Diameter
100 mm
Case Depth
50.5 in

Details

Item
Pressure Gauge
Accuracy
+/-1.00%
Process Connection Location
Bottom
Process Connection Type
NPT
Series
MEX5
Lens Material
Glass
Primary Scale Units
psi
Liquid-Filled Case
Yes
Panel-Mountable
No
Blowout Safety Back
Yes
Socket Material
316 Stainless Steel
Standards
ATEX Ex II 2 GDc-IM2c, EN 837-1
Case Material
Stainless Steel
Case Color
Metallic
Includes
Vent Plug
Sensor Material
316L Stainless Steel
Pointer Color
Black
Pressure Range Type
Compound
Dial Color
White
Process Connection Gender
Male
Primary Scale Vacuum Measurement - Maximum
10,000 psi
Compatible with Brand
Universal
Accuracy Grade
EN 837-1
Non-Sparking
Yes
Case Liquid
Silicone
Primary Scale Vacuum Measurement - Minimum
0 psi
Process Media Temperature - Minimum
-4 Degrees F
Dial Face Material
Aluminum
Field Fillable
No
Process Media Temperature - Maximum
158 Degrees F
Scale Type
Single
IP Rating
IP65
Pressure Gauge Type
Industrial Pressure Gauge
Bezel Gasket Material
Elastomer
Pointer Material
Aluminum
Operating Temperature - Maximum
70 Degrees C
Includes Calibration Certificate
No
Primary Scale Pressure Measurement - Maximum
10,000 psi
Secondary Scale Units
bar
Compatible with Series
MEX5
NEMA Enclosure Rating
No Enclosure
Primary Scale Pressure Measurement - Minimum
0 psi
Operating Temperature - Minimum
-20 Degrees C
Bezel Material
Stainless Steel

Description

Pressure Gauge, Accuracy +/-1.00 Percent, Process Connection Type NPT, Process Connection Gender Male, Lens Material Glass, Process Connection Size 1/2 in, Field Fillable No, Process Connection Location Bottom, Case Color Metallic, Dry Dampening Feature Not Applicable, Dial Color White, Pressure Gauge Type Industrial Pressure Gauge, Liquid-Filled Case Yes, Panel-Mountable No, Socket Material 316 Stainless Steel, Sensor Material 316L Stainless Steel, Accuracy Grade EN 837-1, Series MEX5
