Load Centre Mounting Lug, 120/240V, 125A
- Mfr # BR612L125FDP
- Zoro # G2921719
product price:
$
51.39
/ea
Key Features
Voltage
120V, 240V
Amps
125 A
Max. Wire Size
1 AWG
Min. Wire Size
14 AWG
Type
Main lug
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- BR612L125FDP
- Zoro #
- G2921719
- UPC #
- 786676001311
- Country of Origin
- United States
- Item
- Load Centre Mounting Lug
- Voltage
- 120V, 240V
- Amps
- 125 A
- Type
- Main lug
- Enclosure Material
- Metallic
- Main circuit breaker
- BR
- Mounting
- Flush
- Number of wires
- 3
- Cover
- Cover included
- Interrupt rating
- 10 kAIC
- Bus material
- Aluminum
- Used with
- Type BR 1-inch breakers
- Number Of Circuits
- 12
- Enclosure
- NEMA 1
- Product Weight
- 9.3 lb
- Phase
- Single-phase
- Special features
- Current design
- Certifications
- UL 67
- Number Of Spaces
- 6
Dimensions
- Max. Wire Size
- 1 AWG
- Min. Wire Size
- 14 AWG
- Product Length/Depth
- 3.56 in
- Wire size
- #14-1 AWG Cu/Al
- Product Width
- 11 in
- Product Height
- 13 in
Description

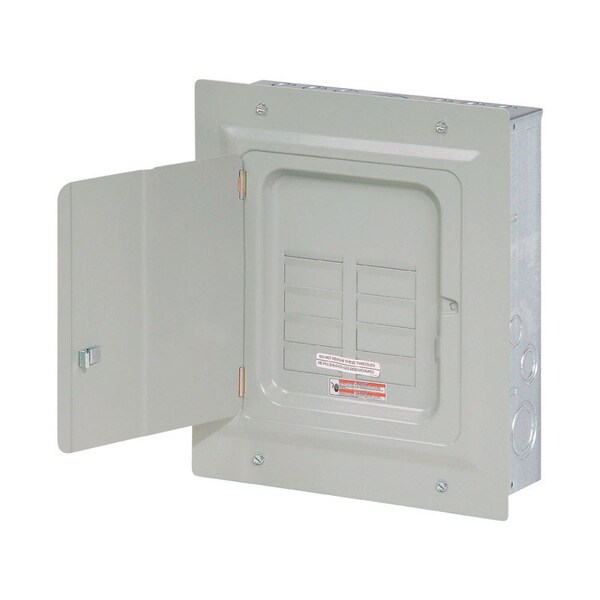

Specially designed for easy installation, Eaton's BR load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. This panel is a main lug panel which is used as sub-panel to add circuits to an existing main breaker panel. Subpanels are often used in a garage, home addition, barn or storage shed and workshop. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.
- • Uses type BR, BD, BQ, GFCB Eaton circuit breakers
- • Steel back pan provides solid and reliable breaker mounting-single piece design for stability and durability
- • Provides easier mounting and leveling
- •
- •
