  11. Cordset, 12 Pin Pin, Receptacle, Female

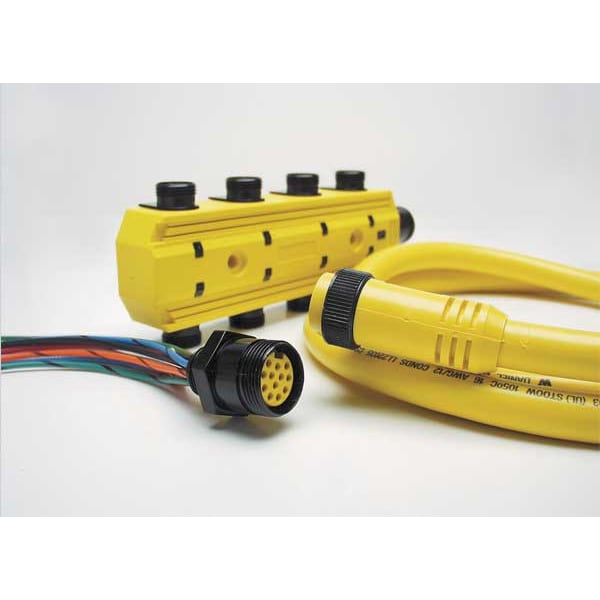

Brad Harrison Cordset, 12 Pin Pin, Receptacle, Female 3R2004A20A120 - main

Cordset, 12 Pin Pin, Receptacle, Female

  • Mfr # 3R2004A20A120

  • Zoro # G0803065

product price: $114.99
/ea
Free Shipping & Returns

Key Features

End 1 Number of Pins
12
Cable Length
1 ft
Wire Size
16 AWG
IP Rating
IP67, IP68
End 1 Connection Type
1 1/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3R2004A20A120
Zoro #
G0803065
UPC #
-
Country of Origin
Mexico

Dimensions

Cable Length
1 ft
Wire Size
16 AWG
Connector Mating Size
1-1/8 -16 UN-2A
Mounting Size
1/2-14 NPT Mount
Length
0.305m
Mounting Thread Size
1/2" - 14 NPT

Details

Item
Cordset
End 1 Number of Pins
12
IP Rating
IP67, IP68
End 1 Connection Type
1 1/8 in
Temp. Range
-13 Degrees to 194 Degrees F
Max. Voltage
600VAC/VDC
NEMA Rating
6P
Standards
CSA Certified, UL Listed
Features
Patented Quad Beam Contact Provides High Reliability and Low Resistance; Flexible
Number of Conductors
9
End 1 Keyway
Single
Max. Amps
5 A
End 2 Connection Type
Bare Wire
End 1 Thread
1 1/8"-16
End 1 Gender and Plug End
Female Receptacle
Keyway
Single
Color
Orange, Blue, White-Black Trace, Red-Black Trace, Green-Black Trace, Orange-Black Trace, Blue-Black Trace, Black-White Trace, Green-Gnd, Red, White, Black
End 1 Number of Keyways
1
Cable Jacket Material
PVC
End 1 Mounting Orientation
Straight
Number of Wires
12
Minimum Operating Temperature
-4 Degrees F
End 1 Gender
Female
Maximum Operating Temperature
221 Degrees F
Cable Jacket Color
Yellow
Type
Female, Mini Receptacle
Application/Rating - NEMA
NEMA 6P
Orientation
Straight
Coupling Type
External Thread
Gender
Female
CSA
LR6837
Poles
12
Voltage - Maximum
600V AC/DC
Material
Black Epoxy Zinc Die-cast
UL
E152210
Termination Type
Wire Leads
Temperature Range - Operating
-20°C to +105°C
Material - Component
Zinc Die-Cast with Black Epoxy
Current - Maximum per Contact
5.0A
Wire/Cable Type
UL 1015
Product Type
Single Ended

Description

Cordset, End 1 Gender Female, End 1 Thread 1 1/8 In.-16, End 1 Number of Pins 12, End 1 Mounting Orientation Straight, End 1 Connection Type 1 1/8 in, End 2 Gender Not Applicable, End 2 Thread Not Applicable, End 2 Connection Type Bare Wire, Cable Length 1 ft, Cable Jacket Color Yellow, Cable Jacket Material PVC, Max. Amps 5 A, Wire Size 16 AWG, Maximum Operating Temperature 221 Degrees F, Minimum Operating Temperature -4 Degrees F, IP Rating IP67, Standards CSA Certified, UL Listed
