Brad Harrison

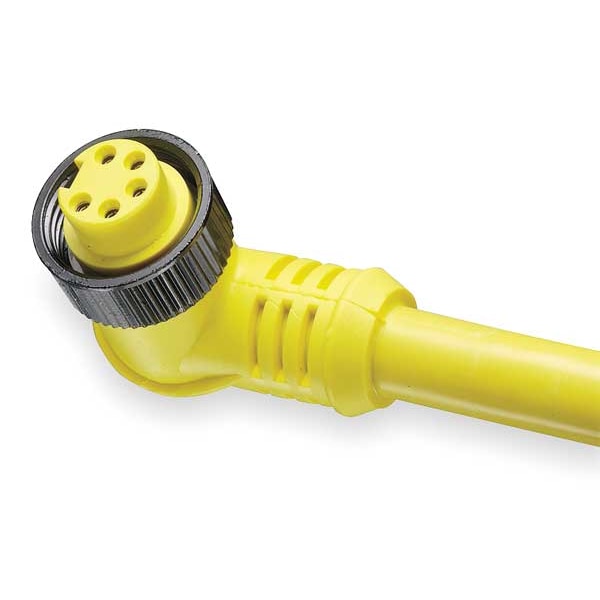

Cordset, 5 Pin, Receptacle, Female

product price: $46.95
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Cable Length 6 ft
  • Jacket Color Yellow
  • End 1 Number of Pins 5
  • Max. Voltage 600 V AC, 600 V DC
  • End 1 Thread 7/8"-16
See all product information

Product Information

Dimensions

Cable Length 6 ft
Wire Size 16 AWG

Details

Item Cordset
Jacket Color Yellow
End 1 Number of Pins 5
Max. Voltage 600 V AC, 600 V DC
End 1 Thread 7/8"-16
End 1 Connection Type 7/8 in
End 2 Connection Type Bare Wire
End 1 Gender and Plug End Female Right Angle
Temp. Range -4 Degrees to 221 Degrees F
Standards CSA Certified, IEC, UL Listed
End 2 Gender and Plug End Bare Wire
IP Rating IP67, IP68
Number of Conductors 5
End 1 Keyway Single
NEMA Rating 6P
Max. Amps 8 A
Features Low Resistance Contact Design with Gold over Palladium Nickel Plating
Jacket Material PVC
End 1 Number of Keyways 1
End 1 Gender Female
Maximum Operating Temperature 221 Degrees F
End 1 Mounting Orientation Right Angle
Cordset Type Single-Ended
Connector Type 7/8 in
Cable Jacket Color Yellow
Cordset Configuration 7/8"-16 Female Right Angle x Bare Wire
Cable Jacket Material PVC
Minimum Operating Temperature -4 Degrees F
Number of Wires 5

Description

Cordset, End 1 Gender Female, End 1 Thread 7/8 In.-16, End 1 Number of Pins 5, End 1 Mounting Orientation Right Angle, End 1 Connection Type 7/8 in, End 2 Gender Not Applicable, End 2 Thread Not Applicable, End 2 Connection Type Bare Wire, Cable Length 6 ft, Cable Jacket Color Yellow, Cable Jacket Material PVC, Max. Amps 8 A, Wire Size 16 AWG, Maximum Operating Temperature 221 Degrees F, Minimum Operating Temperature -4 Degrees F, IP Rating IP67, IP68, Standards CSA Certified, IEC, UL Listed
