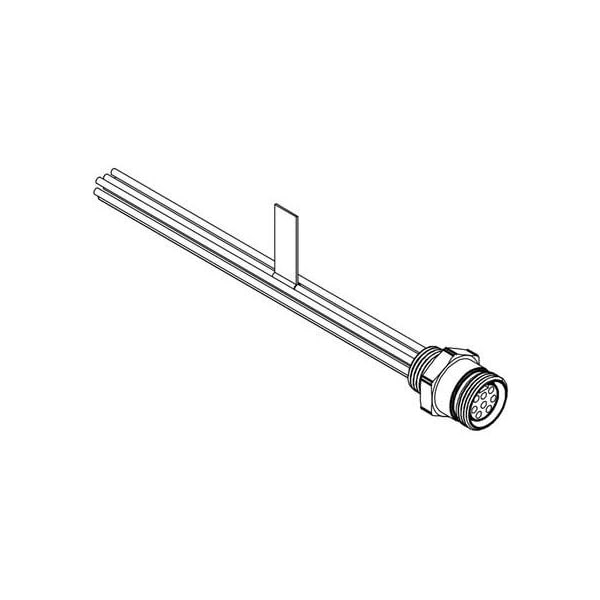

Brad Harrison Cordset, 7 Pin, Receptacle, Female 2R7004A20A120 - main

Cordset, 7 Pin, Receptacle, Female

  • Mfr # 2R7004A20A120

  • Zoro # G2629331

product price: $54.19
/ea

Key Features

End 1 Number of Pins
7
Cable Length
1 ft
Wire Size
16 AWG
IP Rating
IP67, IP68
Max. Amps
8 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2R7004A20A120
Zoro #
G2629331
UPC #
-
Country of Origin
Mexico

Dimensions

Cable Length
1 ft
Wire Size
16 AWG
Connector Mating Size
1-16 UN-2A
Length
0.305m
Mounting Thread Size
1/2" - 14 NPT
Mounting Size
1/2-14 NPT Mount

Details

Item
Cordset
End 1 Number of Pins
7
IP Rating
IP67, IP68
Max. Amps
8 A
Features
Patented Quad Beam Contact Provides High Reliability and Low Resistance; Flexible
End 1 Keyway
Single
End 1 Connection Type
1 in
End 1 Gender and Plug End
Female Receptacle
Number of Conductors
7
End 2 Connection Type
Bare Wire
Max. Voltage
600VAC/VDC
NEMA Rating
6P
Temp. Range
-4 Degrees to 221 Degrees F
End 1 Thread
1"-16
Standards
CSA Certified, UL Listed
Color
White-Black Trace, Black, White, Red, Orange, Blue, Green
Keyway
Single
End 1 Number of Keyways
1
Maximum Operating Temperature
221 Degrees F
Cable Jacket Material
PVC
Minimum Operating Temperature
-4 Degrees F
Cable Jacket Color
Yellow
End 1 Mounting Orientation
Straight
Number of Wires
7
End 1 Gender
Female
Type
Female, Mini Receptacle
Gender
Female
Current - Maximum per Contact
8.0A
Poles
7
Temperature Range - Operating
-20°C to +105°C
Application/Rating - NEMA
NEMA 6P
Material
Black Epoxy Zinc Die-cast
Termination Type
Wire Leads
Wire/Cable Type
UL 1015
Material - Component
Zinc Die-Cast with Black Epoxy
CSA
LR6837
UL
E152210
Coupling Type
External Thread
Voltage - Maximum
600V AC/DC
Orientation
Straight
Product Type
Single Ended

Description

Cordset, End 1 Gender Female, End 1 Thread 1 In.-16, End 1 Number of Pins 7, End 1 Mounting Orientation Straight, End 1 Connection Type 1 in, End 2 Gender Not Applicable, End 2 Thread Not Applicable, End 2 Connection Type Bare Wire, Cable Length 1 ft, Cable Jacket Color Yellow, Cable Jacket Material PVC, Max. Amps 8 A, Wire Size 16 AWG, Maximum Operating Temperature 221 Degrees F, Minimum Operating Temperature -4 Degrees F, IP Rating IP67, Standards CSA Certified, UL Listed, NEMA Rating 6P
