Shop BRAD HARRISON

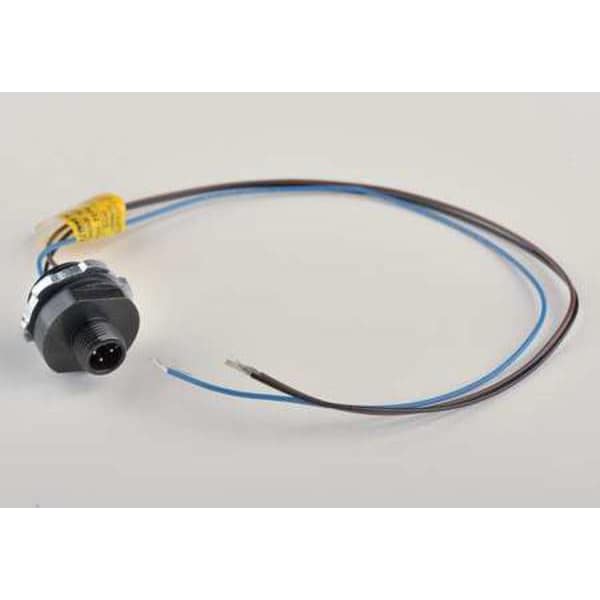

External Thread Receptacle, 3, Male, 22 AWG

  • Mfr # 8R3006A18A120

  • Zoro # G2257753

product price:
$
21.15
/ea

Key Features

Product Type
External Thread Receptacle
End 1 Number of Pins
3
Wire Size
22 AWG
Cable Length
1 ft
IP Rating
IP67, IP68
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
8R3006A18A120
Zoro #
G2257753
UPC #
-
Country of Origin
Mexico

Dimensions

Wire Size
22 AWG
Cable Length
1 ft
Wire Length
1 ft
Face Dia.
0.57 in
Length
0.305m
Mounting Thread Size
1/2"-14
Connection Diameter
1 in

Details

Item
External Thread Receptacle
Product Type
External Thread Receptacle
End 1 Number of Pins
3
IP Rating
IP67, IP68
Max. Amps
4 A
Maximum Operating Temperature
176 Degrees F
Max. Voltage
250V AC/DC
Plug End
Straight
Body Material
Aluminum
Keyway
Single
Plug or Connector Type
Male
NEMA Rating
6P
Standards
CE, China RoHS, CSA, EU RoHS, REACH SVHC, UL Listed
Threads
M12
Color
Brown, Blue, Black
Number of Pins
3
For Use With
Control Panels; Junction Boxes; Sensors
Features
Gold Over Nickel-Plated Contacts
Temp. Range
-4 Degrees to 176 Degrees F
Voltage - Maximum
250V AC/DC
Panel Mount
Front
Gender
Male
Coupling Type
External Thread
UL
E152210
Wire/Cable Type
Leads, UL 1061
Current - Maximum per Contact
4.0A
CSA
LR6837
Orientation
Straight
Material - Component
Black Annodized Aluminum
Temperature Range - Operating
-20°C to +80°C
Poles
3
Mounting Thread Type
NPT
Connection Color
Black
Current Rating - Maximum
4 A
Operating Temperature - Maximum
176 Degrees F
Compatible Wire Gauge
22 AWG
DC Voltage Rating - Maximum
250 V
Series
120070
Mounting Style
Panel
AC Voltage Rating - Maximum
250 V
Number of Keyways
1
Operating Temperature - Minimum
-4 Degrees F
NEMA Enclosure Rating
6

Description

External Thread Receptacle, Number of Pins 3, Plug or Connector Type Male, Straight Plug End, Max. Voltage 250V AC/DC, Max. Current 4 A, Wire Size 22 AWG, Threads M12, Face Dia. 0.57 in, Keyway Single, Body Material Aluminum, Color Black, NEMA Rating 6P, IP Rating IP67, Wire Length 1 ft, Standards CE, China RoHS, CSA, EU RoHS, REACH SVHC, UL Listed
