  6. External Thread Receptacle, 4, Female, 10A

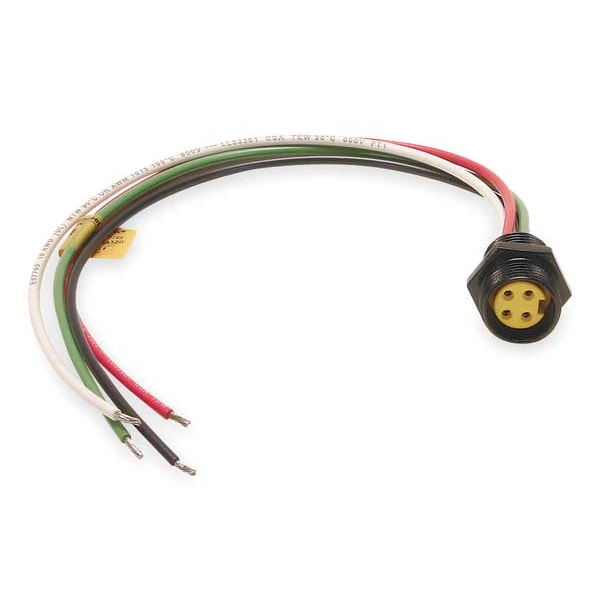

Brad Harrison External Thread Receptacle, 4, Female, 10A 1R4004A20A120 - main

External Thread Receptacle, 4, Female, 10A

  • Mfr # 1R4004A20A120

  • Zoro # G2258304

product price:  $29.59
/ea

Key Features

Cable Length
1 ft
Wire Size
16 AWG
IP Rating
IP67, IP68
Cable Jacket Color
Gray
Max. Amps
10 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
1R4004A20A120
Zoro #
G2258304
UPC #
-
Country of Origin
Mexico

Dimensions

Cable Length
1 ft
Wire Size
16 AWG
Face Dia.
0.55 in
Mounting Thread Size
1/2"-14
Length
0.305m
Connection Diameter
1 in

Details

Item
External Thread Receptacle
IP Rating
IP67, IP68
Cable Jacket Color
Gray
Max. Amps
10 A
Maximum Operating Temperature
221 Degrees F
NEMA Rating
6P
Plug or Connector Type
Female
Max. Voltage
600V AC/DC
Keyway
Single
Standards
CE, China RoHS, CSA, EU RoHS, REACH SVHC, UL Listed
Threads
1/2-14
Plug End
Straight
Body Material
Die-Cast Zinc
Color
Black, White, Red, Green
Features
Gold Over Nickel-Plated Contacts
Temp. Range
-4 Degrees to 221 Degrees F
Product Type
External Thread Receptacle
Poles
4
Voltage - Maximum
600V AC/DC
Gender
Female
Material - Component
Zinc Die-Cast with Black Epoxy
Coupling Type
External Thread
UL
E152210
Orientation
Straight
Current - Maximum per Contact
10.0A
Wire/Cable Type
UL 1015
Temperature Range - Operating
-20°C to +105°C
CSA
LR6837
Mounting Thread Type
NPT
DC Voltage Rating - Maximum
600 V
Mounting Style
Panel
AC Voltage Rating - Maximum
600 V
Connection Color
Black
NEMA Enclosure Rating
6
Operating Temperature - Minimum
-4 Degrees F
Number of Keyways
1
Series
130013
Cable Jacket Material
PVC
End 1 Number of Pins
4

Description

External Thread Receptacle, Number of Pins 4, Plug or Connector Type Female, Straight Plug End, Max. Voltage 600V AC/DC, Max. Current 10 A, Wire Size 16 AWG, Threads 1/2-14, Face Dia. 0.55 in, Keyway Single, Body Material Die-Cast Zinc, Color Yellow, NEMA Rating 6P, IP Rating IP67, Wire Length 1 ft, Standards CE, China RoHS, CSA, EU RoHS, REACH SVHC, UL Listed
