Shop BRAD HARRISON

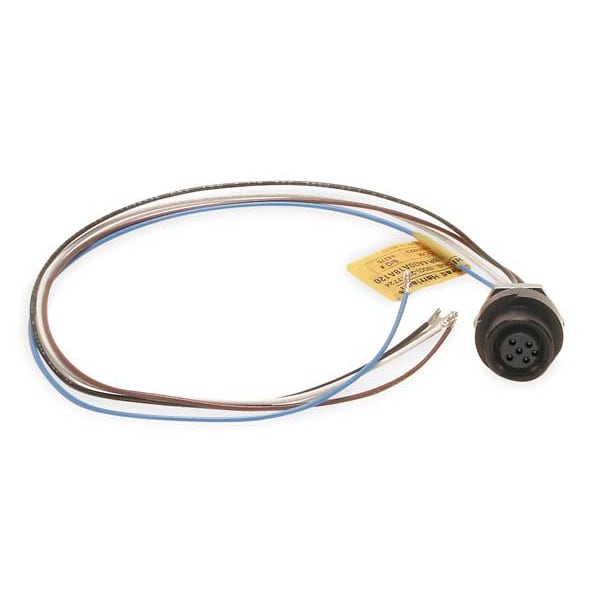

Internal Thread Receptacle, 4, Female, 4A

  • Mfr # 8R4A00A18A120

  • Zoro # G2669685

product price:  $26.89
/ea

Key Features

Product Type
Internal Thread Receptacle
End 1 Number of Pins
4
Wire Size
22 AWG
Cable Length
1 ft
IP Rating
IP68
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
8R4A00A18A120
Zoro #
G2669685
UPC #
-
Country of Origin
Mexico

Dimensions

Wire Size
22 AWG
Cable Length
1 ft
Face Dia.
0.374 in
Length
0.305m
Mounting Thread Size
1/4"-18
Connection Diameter
0.56 in

Details

Item
Internal Thread Receptacle
Product Type
Internal Thread Receptacle
End 1 Number of Pins
4
IP Rating
IP68
Max. Amps
4 A
Maximum Operating Temperature
176 Degrees F
Threads
M12
Color
Brown, White, Blue, Black
Plug or Connector Type
Female
Body Material
Aluminum
Plug End
Straight
NEMA Rating
6P
Keyway
Single
Standards
CE, China RoHS, CSA, EU RoHS, REACH SVHC, UL Listed
Max. Voltage
250V AC/DC
For Use With
Control Panels; Junction Boxes; Sensors
Features
Gold Over Nickel-Plated Contacts
Temp. Range
-4 Degrees to 176 Degrees F
UL
E152210
Temperature Range - Operating
-20°C to +80°C
Orientation
Straight
CSA
LR6837
Voltage - Maximum
250V AC/DC
Current - Maximum per Contact
4.0A
Poles
4
Panel Mount
Front
Material - Component
Black Annodized Aluminum
Gender
Female
Coupling Type
Internal Thread
Wire/Cable Type
Leads, UL 1061
Operating Temperature - Minimum
-4 Degrees F
AC Voltage Rating - Maximum
250 V
Series
120070
Mounting Style
Panel
Connection Color
Black
DC Voltage Rating - Maximum
250 V
Number of Keyways
1
NEMA Enclosure Rating
6
Mounting Thread Type
NPT

Description

Internal Thread Receptacle, Number of Pins 4, Plug or Connector Type Female, Straight Plug End, Max. Voltage 250V AC/DC, Max. Current 4 A, Wire Size 18 AWG, Threads M12, Face Dia. 0.374 in, Keyway Single, Body Material Aluminum, Color Black, NEMA Rating 6P, IP Rating IP67, Wire Length 1 ft, Standards CE, China RoHS, CSA, EU RoHS, REACH SVHC, UL Listed
