Product Information
MFR #
302000A01F120
Zoro #
G0398597
UPC #
78678807738
Country of Origin
Unknown
Dimensions
Cable Length
3.66 m
Cable Diameter
18.03mm (.710")
Wire Size
16 AWG
Details
Keyway
Single
CSA
LR6837
Orientation
Straight to Pigtail
Poles
12
UL
E152210
Temperature Range - Operating
-20°C to +105°C
Material - Coupling Nut
Black Epoxy Coated Zinc
Gender
Female-Pigtail
Coupling Style
Threaded
Voltage - Maximum
600V
Material - Connector Body
PVC
Wire/Cable Type
STOOW
Current - Maximum per Contact
5.0A
LED Indicator
No
Material - Plating Mating
Gold
Item
Cordset
Cable Jacket Color
Yellow
Cable Jacket Material
PVC
Product Type
Single Ended
Description

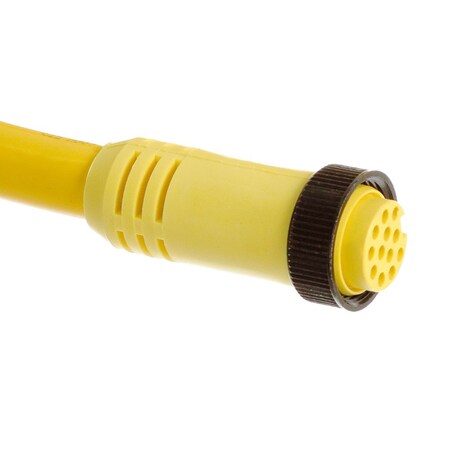

Mini-Change C-Size Single-Ended Cordset, 12 Poles, Female (Straight) to Pigtail, 16 AWG, PVC Cable, 3.66m (12.0 ft.) Length
