  11. MIC 3P FP 12 ft No 22/3 AUTO

This item is Discontinued.

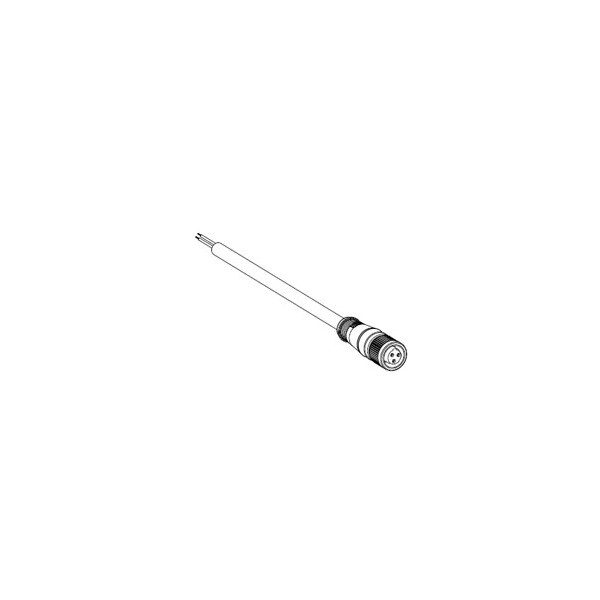

Brad Harrison MIC 3P FP 12 ft No 22/3 AUTO 703000D02F120

MIC 3P FP 12 ft No 22/3 AUTO (Discontinued)

  • Mfr # 703000D02F120
  • Zoro # G0399735
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
703000D02F120
Zoro #
G0399735
UPC #
078172553063
Country of Origin
Mexico

Dimensions

Cable Length
3.7 m
Cable Diameter
5.72mm (.225")
Wire Size
22 AWG

Details

IP Rating
IP67
Keyway
Dual
Type
Single Ended
Material - Connector Body
TPE
Temperature Range - Operating
-20° to +105°C
Series
120072
Material - Plating Mating
Gold
Connector End A
Micro-Change (1/2" - 20 UNF)
Poles
3
Coupling Style
Threaded
Product Name
Micro-Change (1/2" - 20 UNF)
LED Indicator
No
Orientation
Straight to Pigtail
Material - Contact
Copper Alloy
Connector End B
Pigtail
UL
E152210
Wire/Cable Type
UL 2661
Material - O-Ring
Nitrile Rubber
Gender
Female-Pigtail
Current - Maximum per Contact
4.0A
CSA
LR6837
Material - Coupling Nut
Black Epoxy Coated Zinc
Voltage - Maximum
250V AC/DC
Protocol
PROFIBUS
Cable Jacket Material
PVC
Item
Cordset
Product Type
Single Ended
Cable Jacket Color
Yellow

Description

Micro-Change (1/2"-20 UNF) Single-Ended Cordset, 3 Poles, Female (Straight) to Pigtail, 22 AWG, PVC Cable, 3.70m (12.14 ft.) Length
