This item is Discontinued.

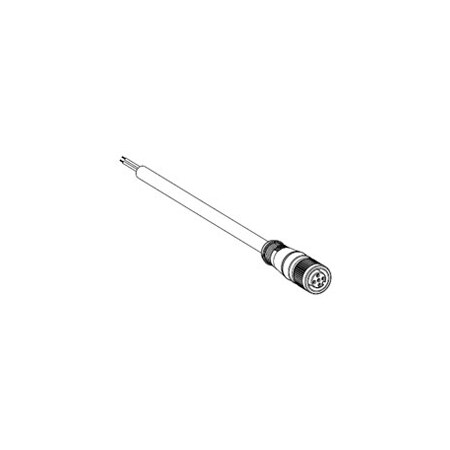

Brad Harrison MIC 4P FP 5M No 22AWG PVC 804000A09M050

MIC 4P FP 5M No 22AWG PVC (Discontinued)

  • Mfr # 804000A09M050
  • Zoro # G0358198
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
804000A09M050
Zoro #
G0358198
UPC #
78172553162
Country of Origin
Unknown

Dimensions

Cable Length
5 m
Cable Diameter
5.33mm (.210")
Wire Size
22 AWG

Details

IP Rating
IP67
Keyway
Single
Type
Single Ended
Current - Maximum per Contact
4.0A
Poles
4
UL
E152210
Material - Connector Body
PVC
Coupling Style
Threaded
Voltage - Maximum
250V AC/DC
Material - Coupling Nut
Nickel-plated Brass
Wire/Cable Type
UL 2661
Gender
Female-Pigtail
Material - Plating Mating
Gold
Temperature Range - Operating
-20°C to +105°C
CSA
LR6837
LED Indicator
No
Material - O-Ring
Fluoro-elastomer
Orientation
Straight to Pigtail
Series
120065
Connector End B
Pigtail
Material - Contact
Copper Alloy
Product Name
Micro-Change (M12)
Connector End A
Micro-Change (M12)
Cable Jacket Color
Yellow
Cable Jacket Material
PVC
Item
Cordset
Product Type
Single Ended

Description

Micro-Change (M12) Single-Ended Cordset, 4 Poles, Female (Straight) to Pigtail, 22 AWG, PVC Cable, 5.0m (16.40 ft.) Length
