Product Information
MFR #
8A5006-31
Zoro #
G0405868
UPC #
78678875705
Country of Origin
Unknown
Dimensions
Wire Size AWG
18
Cable Diameter
3.30-6.60mm (.130-.260")
Details
Material - Coupling Nut
Nickel-plated Brass
Orientation
Straight
Voltage - Maximum
30V AC / 36V DC
Material - Plating Mating
Silver
CSA
LR6837
Temperature Range - Operating
-25°C to +90°C
Material - Connector Body
PA
Gender
Male
Current - Maximum per Contact
4.0A
Keyway
Single
Coupling Type
External Thread
Poles
5
Type
Field Attachable Connector
Product Name
Micro-Change (M12)
IP Rating
IP67
Material - Contact
Brass
Series
120071
Diagnostics / LEDs
No
Approvals
cCSAus certified
Description

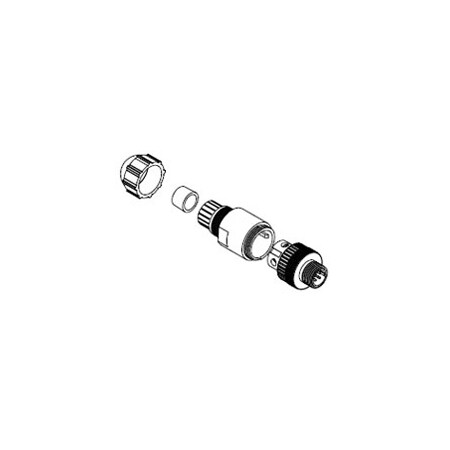

Micro-Change (M12) Single Keyway with PG7 Cable Fitting, Straight Male, 5 Poles, Cable Diameter 3.30-6.60mm
