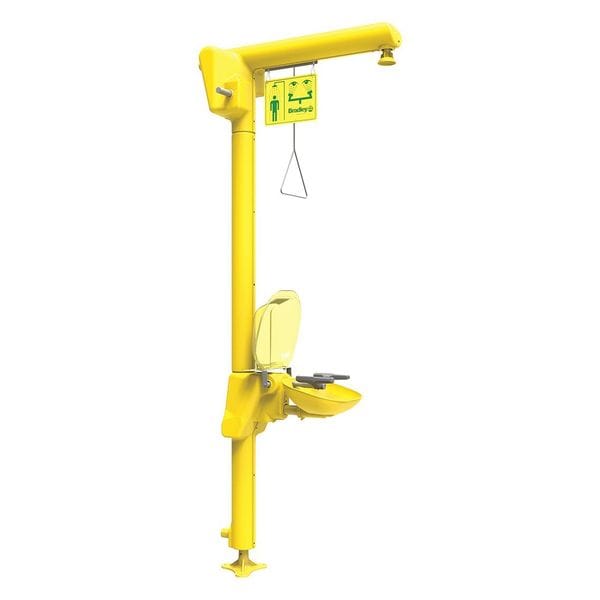

Shower with Eyewash, Floor Mount, 93 3/4 in H., 16 1/2 in W

The Bradley S19-304D2B is a floor-mounted combination drench shower and eyewash station from the Halo series, designed for facilities requiring emergency response in freezing or hazardous locations. The unit stands 93 3/4 in. high and 16 1/2 in. wide, and pairs a SpinTecTM plastic showerhead with a covered plastic eyewash bowl that provides coverage for the eyes and face.

The unit is heat-traced with self-regulating heat cable and rated for a minimum operating temperature of -10°F. It has a bottom inlet that includes a freeze protection valve. The shower is activated by a stainless steel pull rod, and the eyewash bowl is covered. The fixture carries a Class I/Division 2 hazardous location rating and is NEMA 4X rated.

The painted galvanized steel stanchion uses galvanized steel pipe, with a chrome-plated brass valve and stainless steel handles. Connections are 1 1/4 in. NPT male at both inlet and outlet, with a minimum flow rate of 3 gpm. The unit is hardwired for 120V AC (0.7 A) power. The S19-304D2B ships assembled and includes an inspection tag and a universal identification sign. It meets ANSI Z358.1 (primary compliance) and is CSA Certified and UL Listed.

Key Features:

• MFR #: S19-304D2B · Series: Halo
• Type: Combination shower with eyewash · Mount: Floor
• Height: 93 3/4 in. · Width: 16 1/2 in. · Color: Yellow
• Pipe material: Galvanized steel · Stanchion: painted galvanized steel
• Inlet/Outlet: 1 1/4 in. NPT male · Inlet location: bottom, with freeze protection valve
• Bowl: 13 in. dia., plastic, covered · Coverage: eyes and face
• Shower activation: Pull rod (stainless steel handle)
• Minimum flow rate: 3 gpm
• Electrical: 120V AC, 0.7 A, hardwired
• Min. operating temperature: -10°F · Heat-traced (self-regulating)
• Ratings: Class I/Division 2, NEMA 4X
• Standards: ANSI Z358.1 (primary), CSA Certified, UL Listed
• Includes: inspection tag, universal identification sign
• Barrier free: Yes · ADA compliant: No
