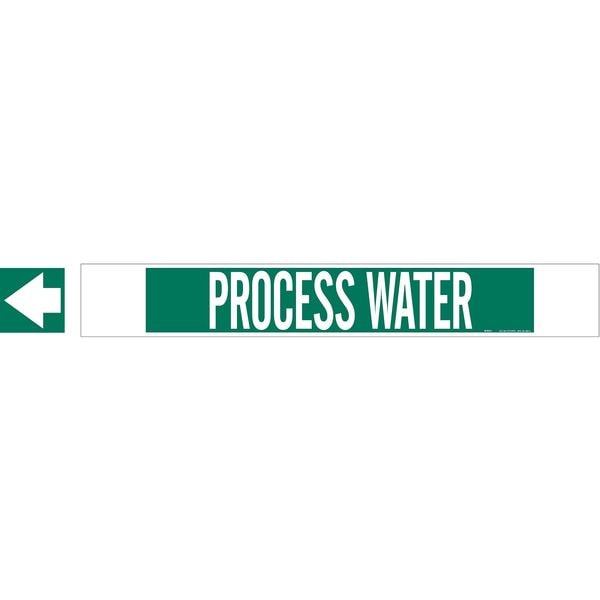

Pipe Marker, Process Water, Gn, 8 In orGrtr, 5747-HPHV

  • Mfr # 5747-HPHV

  • Zoro # G5502262


product price: $51.85
/ea

Key Features

Width
24 in
Thickness
0.005 in
Height
4 in
Standards
ANSI A13.1-2007
Background Color
Green
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5747-HPHV
Zoro #
G5502262
UPC #
754473599119
Country of Origin
United States

Dimensions

Width
24 in
Thickness
0.005 in
Height
4 in
Roll Length
4 in
Character Height
3 1/2 in
Length
32 in
Roll Width
24 in

Details

Item
Pipe Marker
Standards
ANSI A13.1-2007
Background Color
Green
With or Without Arrows
With
Reflective
No
Legend
Process Water
Material
Plastic
Legend Color
White
Legend Alpha Range
P to S
Fits Pipe O.D.
8 in and Larger
Indoor/Outdoor Usage
Indoor/Outdoor
Self-Adhesive
Yes
Language
English
Pipe Marker Subject Matter
Water
Marker Attachment Style
Fiberglass Carrier
Flow Direction Arrow
Left
Operating Temp. Range
0 Degrees F
Average Outdoor Durability
5 to 8 yr
Humidity Resistant
No
NFPA 99, CGA C-9
No
Pipe Marker Legend
Process Water
Abrasion Resistant
Yes
Glow In The Dark
No
Printed Language
English
Minimum Pipe O.D.
8 in
UV Resistant
No
Minimum Application Temperature
0 Degrees F
Pipe Marker Material
Plastic
Protective Coating
No Protective Coating
Number of Pipe Markers
1
Weather Resistant
No
Pipe Marker Package Type
Each
Chemical Resistant
Yes
ANSI/ASME A13.1
Yes
ISO 14726
No
Water Resistant
No
Maximum Service Temperature
230 Degrees F
Minimum Service Temperature
-40 Degrees F
Pipe Marker Mounting Style
Fiberglass Carrier with Strapping and Mounting Clip Pipe Markers
Legend Text Color
White

Description

Pipe Marker, Pipe Marker Mounting Style Fiberglass Carrier with Strapping and Mounting Clip Pipe Markers, Pipe Marker Legend Process Water, Legend Text Color White, Character Height 3 1/2 in, Background Color Green, With or Without Arrows With
