  6. 1900 Watt 3 (3/2/1) Channel Hybrid Mosfet/ Digital Amplifier

This item is Discontinued.

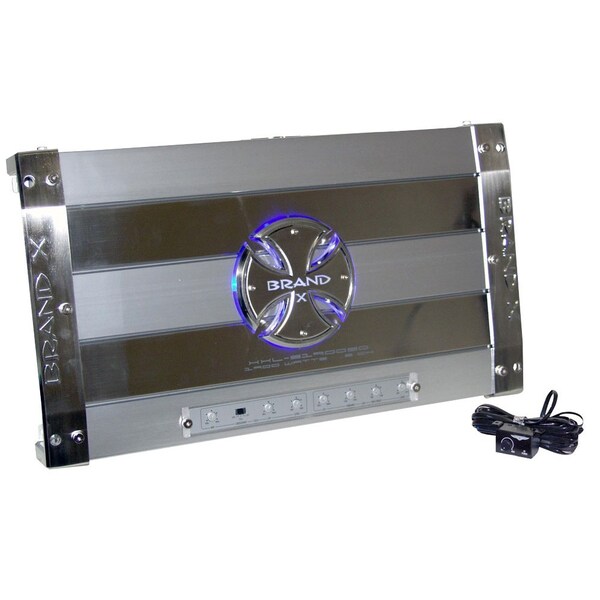

Brandx 1900 Watt 3 (3/2/1) Channel Hybrid Mosfet/ Digital Amplifier XXL319003D

1900 Watt 3 (3/2/1) Channel Hybrid Mosfet/ Digital Amplifier (Discontinued)

  • Mfr # XXL319003D
  • Zoro # G800628333
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
XXL319003D
Zoro #
G800628333
UPC #
068888890403
Country of Origin
China

Dimensions

Width
11.6 in
Depth
20.6 in
Height
2.7 in

Details

Features
Remote Bass Control, Pulse Width Modulation Circuitry
Channels
(3) Audio
Power Rating (Watts)
1060W, 250W at 2 ohm; 200W, 880W at 4 ohm
Maximum Low Pass Filter Frequency
400 Hz
Maximum High Pass Filter Frequency
40 kHz
Maximum Subsonic Filter Frequency
50 Hz
Minimum High Pass Filter Frequency
40 Hz
RMS Output Power
1400 W
Minimum Subsonic Filter Frequency
10 Hz
Maximum Input Voltage Sensitivity
6V DC
Minimum Input Voltage Sensitivity
0.3V DC
Minimum Low Pass Filter Frequency
40 Hz
Power Supply
MOSFET
Item
Car Amplifier
PMPO Output Power
1900 W
Signal to Noise Ratio
80 dB
Total Harmonic Distortion
0.001

Description

200 Watts X 2 Channel + 800 Watts X 1 Channel @ 4 Ohm - 250 Watts X 2 Channel + 1060 Watts X 1 Channel @ 2 Ohm - 1400 Watts X 1 Channel Mono @ 1 Ohm - 1900 Watts MAX Power 250 Watts X 2 Channel + 1400 Watts X 1 Channel - Hi Pass Crossover: 40Hz-4KHz @ 12db (Ch1/2) - Low Pass Crossover: 40Hz-400Hz @ 12db (Ch1/2) - Low Pass Crossover: 40Hz-400Hz @ 24db (Mono) - Subsonic Filter 10Hz-50Hz @ 24db (Mono) - Variable Bass Boost @ 45Hz: 18dB - Discrete Class AB MOSFET Mobile Audio Amplifier - Top Mounted Fully Adjustable Linkwitz Riley Crossover Network - Full Range Pass Thru Line Outputs - 0/4 Gauge Billet Style Machined High Current Power & Speaker Terminal Block - High Quality Surface Mount, RCA Inputs & RCA Outputs - Wired Bass Remote Control - Heavy Duty Power Aluminum Heat sink - Power & Protection LED Indicators - Soft Turn-on/Turn-off - Fuses: 3 x 80 Amp Maxi - Dimensions: 11.57''W x 2.71''H x 20.55''L
