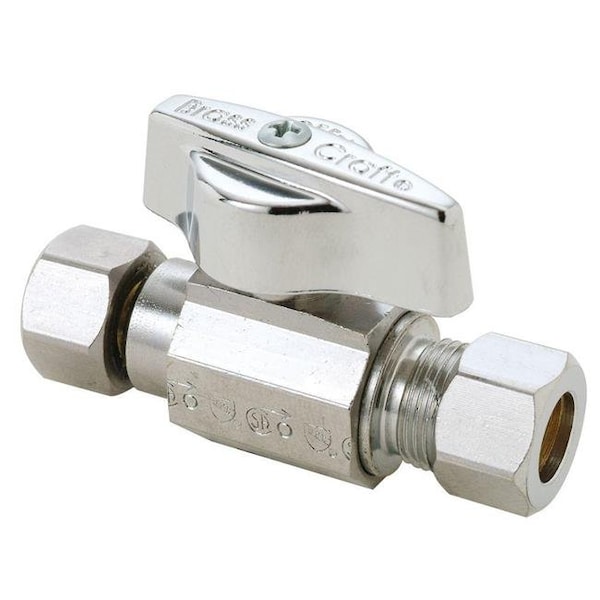

Brasscraft Manufacturing KTCR11FX C1 Straight Valve - 0.375 O.D Compression x 0.375 O.D Female Compression

Straight Valve - 0.375 O.D Compression x 0.375 O.D Female Compression

1/4 Turn On-Off for easy, smooth operation. High performance PTFE seats provide corrosion resistance, watertight seal and ease of use. Precision-machined brass ball resists corrosion; ensures ease of operation. Chrome plated brass body and zinc die cast handle for strength, corrosion resistance and fine appearance.

• Straight Valve - 0.375 O.D Compression x 0.375 O.D Female Compression

• Dimension: 1.19 x 2.25 x 2.75 in.
• Cube: 7.36
• Application: Water Supply
• Color/Finish Family: Brass
• Color/Finish: Chrome
• Compatible Pipe Material: Copper
• Connection: Comp x Comp
• Indoor/Outdoor: Indoor,Outdoor
• Inlet Diameter (In.): 1/4
• Inlet Fitting End Type: Compression
• Inlet Size: 1/4 In.
• Material: Brass
• Maximum Pressure (PSI): 125
• Maximum Working Temperature (F): 140
• Outlet Diameter (In.): 3/8
• Outlet Fitting End Type: Compression
• Product Depth (in.): 1.19
• Product Height (in.): 2.75
• Product Length (in.): 1.188
• Product Width (in.): 2.25
• Stop Valve Type: Straight
• Valve Configuration: Straight
• Valve Connection: Compression
• Valve Inlet Diameter (in.): 0.375
• Valve Type: Stop
• Weight: 0.16 lbs
