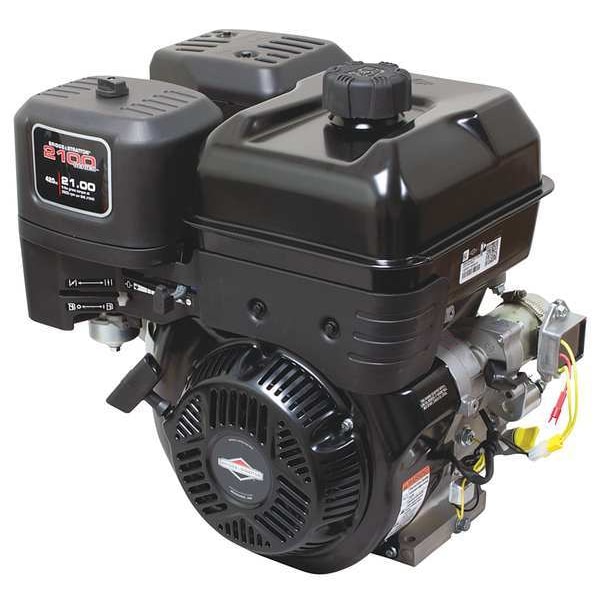

Briggs & Stratton Gas Engine, 3600 rpm, 3.66 in. Shaft L 25T237-0085-F1 - main

Gas Engine, 3600 rpm, 3.66 in. Shaft L

  • Mfr # 25T237-0085-F1

  • Zoro # G9410265

product price:  $1,027.99
/ea
Item requires special delivery charges. A $165.00 per item surcharge will be applied.

Key Features

Includes
Low Oil Sensor, Metal Tank
Ignition Type
Magnetron Electronic
Overall Height (In.)
18 in
Muffler
Yes
Recommended Use
Blowers, Compressors, Log Splitters, Other Chore Applications, Pressure Washers, Tillers
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
25T237-0085-F1
Zoro #
G9410265
UPC #
472820252158
Country of Origin
China

Dimensions

Overall Height (In.)
18 in
Overall Depth Facing PTO (In.)
14.6 in
PTO Shaft Length (In.)
3.66 in
Overall Width (In.)
19.6 in
PTO Shaft Height (In.)
5.25 in
Shaft Height (In.)
5.25 in
PTO Shaft Dia. (In.)
1.0 in
Overall Depth (In.)
14.6 in
Shaft Dia. (In.)
1
Shaft Length (In.)
3 31/64 in
Overall Width
19 5/8 in
Overall Height
18 in
Overall Depth
14 5/8 in
Shaft Diameter
1 in
PTO Shaft Diameter
1 in
Shaft Height
5 1/4 in
PTO Shaft Length
3 11/16 in
Shaft Length
3 1/2 in
PTO Shaft Height
5 1/4 in
Overall Depth Facing PTO
14 5/8 in

Details

Item
Gasoline Engine
Includes
Low Oil Sensor, Metal Tank
Ignition Type
Magnetron Electronic
Muffler
Yes
Recommended Use
Blowers, Compressors, Log Splitters, Other Chore Applications, Pressure Washers, Tillers
Shaft Key (In.)
1/4 in
Maintenance Frequency
Change Oil After 5 Hour Break In Period, and Then After 100 Hour or Annually, Whichever Comes First, Change/Clean Filter and Precleaner Every 25 Hour or Annually, Inspect Muffler and Spark Arrester Every 50 Hour, Replace Air Filter, Spark Plug and Oil Annually, Use Briggs Fuel Treatment to Avoid Carburetion Issues Caused By Stale Fuel
Air Cleaner Type
Dual Clean
Bearings
Ball, PTO
PTO Shaft Key (In.)
0.25 in
Gear Box
No
Function
General Purpose
Start
Electric
Type
4 cycle
Agency Compliance
ASE J1940, CARB, EPA, Meets all Consumer Protection Agency Labeling Guidelines
Engine RPM
3,600 RPM
Starter Type
Recoil/Electric
Cylinders
Cast Iron
Shaft Orientation
Horizontal
RPM
3,600 RPM
Features
Cast Iron Cylinder Sleeve for Extended Life
Low Oil Shut Down
Yes
Overall W Facing PTO (In.)
19.6 in
Series
XR Professional 2100
Fuel Tank Capacity (Qt.)
6.9 qt
Shaft Configuration
Keyed 1/4", Tapped 7/16"-20
Rotation
CCW
Design
Overhead Valve
Overall H Facing PTO (In.)
18 in
Air Filter
Pleated Paper with Foam Pre Cleaner
Application
Blowers, Compressors, Log Splitters, Other Chore Applications, Pressure Washers, Tillers
4 Cycle Engine
yes
Standards
ASE J1940, CARB, EPA, Meets all Consumer Protection Agency Labeling Guidelines
Engine Displacement
420 cc
Overall W Facing PTO
19 5/8 in
Maximum Speed
3,600 RPM
PTO Shaft Key
1/4 in
Shaft Key
1/4 in
Engine Brand
Briggs and Stratton
CARB Compliant
CARB Compliant
Number of Cylinders
1
Engine Series
XR Professional Series
Engine Cycle
4-Cycle
Start Type
Recoil and Electric
Horsepower
13.5 hp
Fuel Tank Capacity
6.9 qt
Overall H Facing PTO
18 in

Description

Gasoline Engine, Engine Series XR Professional Series, Gross Torque Not Applicable, Horsepower 13.5 hp, Shaft Orientation Horizontal, Shaft Configuration Keyed 1/4 In., Tapped 7/16 In.-20, Shaft Diameter 1 in, Shaft Length 3 1/2 in, Start Type Recoil and Electric, Maximum Speed 3,600 RPM, Muffler Yes, CARB Compliant CARB Compliant, Engine Brand Briggs and Stratton, Engine Displacement 420 cc, Fuel Tank Capacity 6.9 qt, Engine Cycle 4-Cycle, Overall Depth 14 5/8 in
